DCX Bitpod

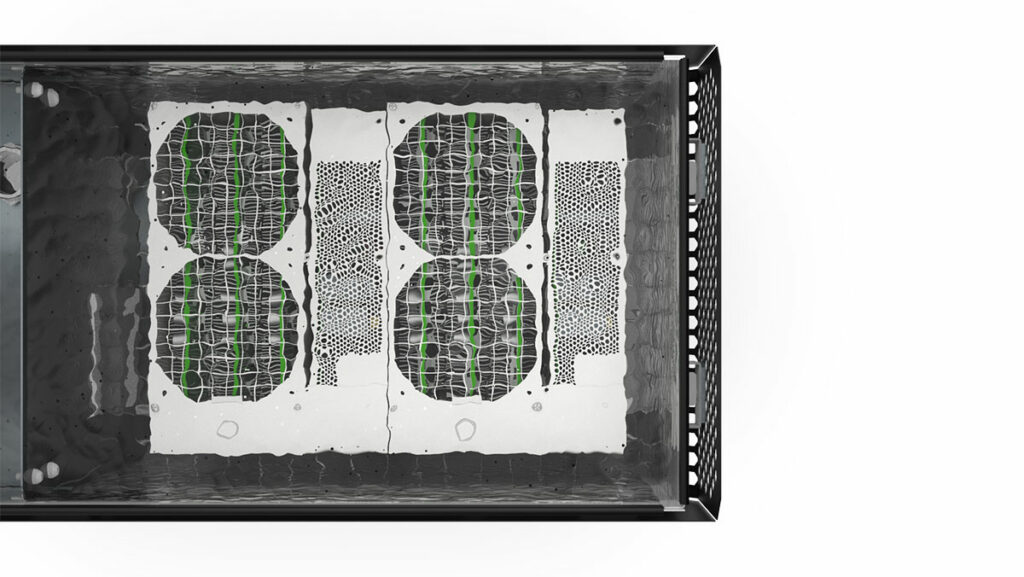

Compact but powerful immersion enclosure, dedicated for small home-based installations. Dual loop immersion system enabling sustainable heat reuse: home or pool heating. Dedicated to 4 x M30 / M50 Whatsminers or 2 overclocked S19 Antminers or 20 GPUs. Combined with ICP15 dry cooler enables silent mining with overclocked performance. Quiet, safe, compact, and highly effective, serves as a small heat pump, providing various heat reuse possibilities for your home mining operations. A complete set: Bitpod enclosure with Thermasafe R dielectric fluid.

Hot Looks

Ut elit tellus, luctus nec magna mattis et, pulvinar dapibus lorem leo ultricies et vitae enim.

Easy Interface

Ut elit tellus, luctus nec magna mattis et, pulvinar dapibus lorem leo ultricies et vitae enim.

True Power

Ut elit tellus, luctus nec magna mattis et, pulvinar dapibus lorem leo ultricies et vitae enim.

Solid Code

Ut elit tellus, luctus nec magna mattis et, pulvinar dapibus lorem leo ultricies et vitae enim.

Overview

This is the most exciting product release we’ve all been anticipating for the last few months. A small but nonetheless effective liquid cooling enclosure for a small amount of miners – BitPod!

Just starting your mining business with just a couple of ASICs and don’t want to invest in a bigger tank? Want to test our liquid cooling solutions on smaller scale before going big? BitPod is here for you! Designed to hold only 1-2x S19 Antminers / 4x M30s Whatsminers or about 10x GPUs, this tank provides up to 14kW of heat rejection in 35C environment. Quiet, safe, compact and highly effective, BitPod can serve as a small heat pump, providing various heat reuse possibilities for your home mining operations. Using the power of your miners to heat a swimming pool, a jacuzzi, floors or even a greenhouse is not only smart, but also ecological.

In the V2 version of the CPU  Module for Intel Processors we added Heat Transfer Components (HTC) which interconnects with coldplate and efficiently transfers the heat from other board components, including VRMs (voltage regulator modules), mainboard bridge, networking and and RAID card. This way we can extract more than 80% of the heat from the mainboard covering all modules which may generate more heat in server without fans or with lower fan speed.

Top Features

  • 4 Whatsminers or 2 s19 Antminers!

  • 15-20kW heat transfer!

  • Heat a swimming pool or home!

ComponentSpecification
Dimensions667(W)x350(D)x515(H) mm
Heat Transfer Capacity15kW
General constructionAll-steel
Dielectric Fluid60L
Heat RejectionWater loop or 15kW ICP (Dry Cooler)
Noise30dB(A)
Power Standard230-240V/1Ph/50/60 Hz
Pump system & Fittings60 lpm / 16 GPM | 1" DN25
Fluid In / Out[°C]60 / 40
Weight40 kg dry

Quick intro

Unboxing of the Immersion Enclosure package and quick intro to the system components.

What you get – bundle

Enclosure with a 40kW dry cooler. We have a new ICP40 now, but you see what you get in the bundle package.

Installation & Startup

You bought the package – now what? Quick installation guide for effective commissioning of this smart immersion cooling system.

Get the specsheet

Get more info

Get the quote

Contact Us

See To Believe

System Build

New, oversized and complete immersion system

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Lorem ipsum dolor sit amet enim. Etiam ullamcorper. Suspendisse a pellentesque dui, non felis. Maecenas malesuada elit lectus felis, malesuada ultricies. Curabitur et ligula. Ut molestie a, ultricies porta urna. Vestibulum commodo volutpat a, convallis ac, laoreet enim. Phasellus fermentum in, dolor. Pellentesque facilisis.

Steel cover to prevent contamination, with spill prevention components.
All-steel enclosure big enough to house up to 400kg of dielectric fluid and miners. Building block for the rack or scale-out container installations. Enables high-temperature mining for the best heat transfer parameters. No more plastic boxes that can crack, leak or melt anytime, no more problems with temperature limits, no more problems with grounding.
L shaped frames to mount external components – switchgear, monitoring systems or PSUs. Placement of PSU outside of the immersion bath requires more retrofitting for the miners, but enables even bigger density and higher temperature for better heat exchange.
IP40 switchgear box for 10-12 3-4kW miners. Contains: 10-12 x overcurrent protection, circuit breaker, cable fittings, terminal blocks, cabling. We use top class Schneider, Eaton, Legrand or Siemens components.
Miner stack area. Sized carefully taking into account various miner types. Allows for flexible placement of different miners. Including: 15x Whatsminer M20/M30/M31 12x Whatsminer M21 8x Antminer S17+ / S17e / T17+ 8x Antminer S19 / S19PRO / T19 10x Innosilicon A10 PRO / A9 / A6 23x Innosilicon A10 (500M) 18x Antminer S9SE / S9K 20x Antminer S9I / S9J 8-16 x Mining rig with up to 12 GPU each 6-7x Hummer H1 Miner 5x Antminer K5 CKB Eaglesong 8-16 GPU rigs with 12GPU each (96-192GPUS)

Features & Competitive Advantages

More performance, better reliability, and more comfort. Nothing is better.

Flexible system supports all crypto mining hardware

Standard UNI Enclosure is able to sustain crypto mining hardware including gpu rigs and asic miners. Each Universal ILC Enclosure will accommodate 6 GPU rigs with up to 12 GPU each , or 18 standard S9 / Z9 / A9 ASIC miners. That results in 72 gpu’s / 18 miners in one UNI Enclosure. Stacking up enclosures to 2/3 levels stack will effect in 216 GPUs or 54 miners in less than 1 square meter. Thats best you can get.

More performance. Less to pay.

Numbers are impressive – 30% less electricity bills with PUE of 1.05 – most of the fans can be removed and system cools miners a long with PSU’s. Liquid cooling systems allows for overclocking and fine tuning with custom firmware which effects in 20% more hashrate with hardware and software optimisation. Additionally most users get up to 10% more shares from stability.

Plug and Mine

Ready to use, delivered with everything required, “plug and mine” solution for every individual that goes pro with 2-3-4 miners or mining rigs. UNI Enclosure is also main component for scale up solutions with 10-20-40 enclosures in our custom racks.  Everything is included whether it is single UNI enclosure or whole rack system. It will work flawlessly even in hot climate with high ambient temperature. Allows to mine virtually everywhere when low cost energy is available without failures and downtime. And the best is – setup takes minutes not weeks.

Silent, low profile mining

One aisc miner generates the noise of 75dB all day and night. With small farm of 2-4 rigs or asic miners its unbearable 24/7. Specific location is needed. Miners must be spaced out and placed in relatively cold place. Air must be filtered and vented which means expenditures for fans, air conditioning, location, filters. With our immersion liquid cooling you will be able mine quietly from your own place or from area with most convenient power. Placing 48 GPUs or 10 asic miners in the box with dimensions less than 70x60x60 solves all the problems. Simple as that.
