Server Immersion Systems

For the past few years the industry could not offer an affordable, universal and standard system which datacenter operators can adapt. Available large, non-standard, bulky, standalone tanks with proprietary, complicated to maintain circulation / heat exchange components, did not meet the requirements of data center operators. This is why DCX designed the first industry standard Immersion Server Enclosure which fits the dimensions of the datacenter IT rack. The solution can be installed in standard datacenter rack layout or in shipping container or edge type datacenter.
DCX Server Immersion Enclosures are available in 3 form factors – standard immersion tank with the capacity of 22 rack units, demo server enclosure which can host up to 14 1U servers, and edge pod system with the capacity of 7 RU. System efficiency reaches almost 120kW of heat transfer per 22RU Server Immersion Enclosure which doubles the efficiency of any competitive solution. Expected water inlet temperature starts from ASHRAE W17 (17C / 62F) to W45 (45C / 113F)

  • Standard dimensions of datacenter IT rack

  • Flexible configuration options including 19″ and 21″ server platforms with full compatibility with OCP Open Rack V3 accessories and servers

  • Built in hydraulic compartment with integrated heat exchanger and dual redundant circulation pumps

  • Up to 22 RU (rack units) or 21OU (open rack units) per Immersion Server Enclosure

  • From 120kW to 80kW Heat Transfer performance

  • Equipped with temperatures, flow & heat transfer monitoring sensors

Server Immersion Enclosure

Industry standard Server Immersion Enclosure. Rack sized, dedicated for 19" or 21" servers with the capacity of 22RU or 21 ORV3 OU. From 80 to 120kW heat transfer performance. Included 2 switched PDU slots and two air cooled 1U switch compartment. Built-in redundant circulation pumps and heat exchanger and complete temperature / flow / heat transfer monitoring system.
Get the SpecsheetSee More

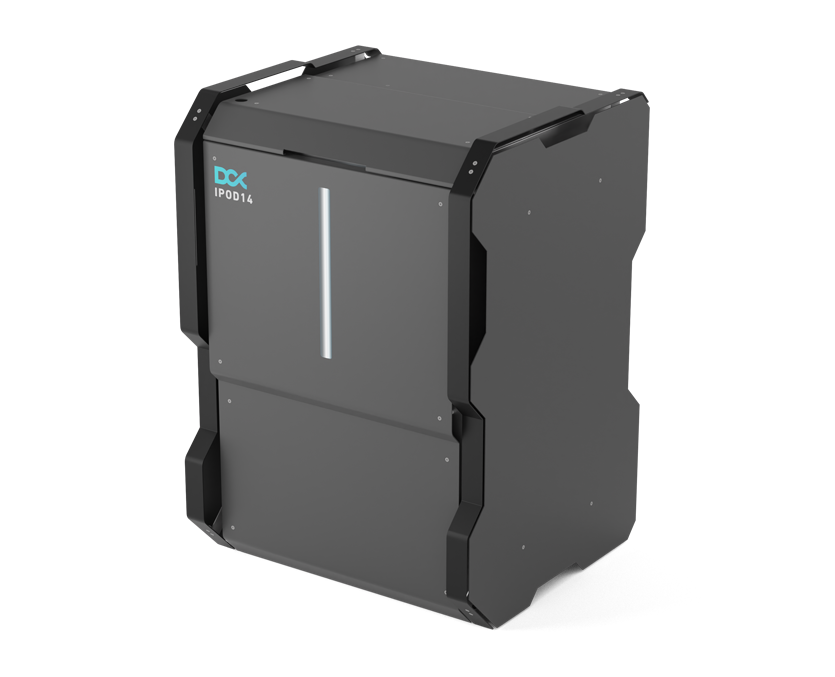

Demo Immersion Enclosure

Demo Server Immersion Enclosure. Rack sized, dedicated for 19" or 21" servers with the capacity of 7RU or 6 ORV3 OU. From 40 to 60kW heat transfer performance. Perfect for proof of concept tests and demonstrations of the immersion cooling technology. Built-in redundant circulation pumps and heat exchanger and complete temperature / flow / heat transfer monitoring system.
Get the SpecsheetSee More

Edge Immersion Pod

Edge Server Immersion Enclosure. Sharing general form factor with other models, Dedicated for 19" or 21" outdoor edge server platforms with the capacity of 7RU or 5 ORV3 OU. From 20 to 28kW heat transfer performance. A resilient and thought built outdoor system for edge / 5G / telco deployments. Built-in redundant circulation pumps and heat exchanger and complete temperature / flow / heat transfer monitoring system.
Get the SpecsheetSee More

Sustainability is in our DNA. Let's change the IT and we will change the world. Together.

We build smart and affordable liquid cooling systems for datacenters and high performance computing.

Everything is designed. Few things are designed well.

We’re DCX, a team of liquid cooling experts. We pride ourselves on being at the forefront of sustainable innovation, developing a unique and smart solutions for data center and telecommunication sector. Our goal is to create future industry standards in liquid cooling technology and to transform the industry forever.

Questions?

You have questions about liquid cooling? We have answers. Contact us. We will design a custom engineering solution completely free od charge!

Tell us more!

Let’s talk!

Every project starts with a vision. We design, manufacture and deliver custom liquid cooling solutions to make your dream a reality.
