DCX HYDRO Coolant Distribution Units (CDUs)

For the past few years, the industry has been unable to deliver cost-effective, reliable, and flexible direct liquid cooling systems. This is why DCX introduced to the market a new DCX HYDRO architecture. A broad portfolio of DCX Coolant Distribution Units (CDUs) is dedicated to high-performance computing, enterprise and colocation data centers. We offer the most comprehensive selection of CDU systems in the industry providing a complete flexibility for data center operators: from 100kW in-rack CDUs, through scale-out In-Row systems: CDU 3, 6, and 9 models which can effectively cool from 10 to 30 server racks. Finally supercomputer class CDU 12 and CDU 50 – 1 to 5MW heat transfer capable system supporting up to 80 server racks.
The broad portfolio of DCX HYDRO CDUs is complemented with open CPU and GPU coldplates, Liquid Distribution Manifolds. DCX also designs technical and facility (TCS & FCS) cooling systems.
  • A new, innovative CDU architecture dedicated to direct liquid cooling of high-performance computing and standard data center servers

  • A most comprehensive & complete range of 7 Coolant Distribution Units, including 4U rack-based CDUs and standalone In-Row CDUs with capacities reaching from 100kW up to 5MW.

  • Over 2 times higher heat transfer performance and twice more servers hosted per CDU compared to alternatives. CDUs feature multistage vertical immersion pumps which deliver superior flow rate and pressure, compared to standard centrifugal pumps found in other CDUs.

  • Enterprise features such as variable-speed pumps, full condensation control, cooling loop separation, redundant components, adaptive operation, energy-efficient cooling & intelligent controls with full remote control of the system.

DCX HYDRO CDU 1

Rack-based CDU's, with 120kW heat transfer capacity at an average 10°C - 15°C approach temperature and 150kW at approach temp claimed by competitive systems. Over 2 x more efficient than comparable in rack 4U CDU's. These rack-based CDU's are equipped with 2 redundant multistage immersion pumps and can effectively cool multiple racks or high-powered HPC systems with 2 x higher pressure and flow rate than any other solution.
Get the SpecsheetSee More

DCX HYDRO CDU 2

Rack-based CDU's, with 170-200kW heat transfer capacity at average 10°C - 15°C approach temperature and 300kW at approach temp claimed by competitive systems. Over 2 x more efficient than comparable rack 4U CDU's, will effectively cool more racks than any other 4U CDU. This rack-based unit is equipped with 2 redundant multistage immersion pumps and can effectively cool multiple racks or high-powered HPC systems with 2 x higher pressure and flow rate than any other solution.
Get the SpecsheetSee More

DCX HYDRO CDU 3

The In-Cabinet type coolant distribution unit (CDU), with a rated cooling capacity of 300kW. The system adopts a clamp connection, which is convenient and quick to install. Dual pump redundancy design, easy to replace and maintain, high reliability. It can be maintained without shutting down when the pump/power fails or the filter is clogged. The system has a comprehensive real-time monitoring function of operating parameters. The communication interface of the upper computer adopts 2 redundant RS485 & 2 redundant RJ45, and the default communication protocol Modbus RTU & Modbus TCP/IP. Also, it can be customized and modified according to customer requirements.
Get the SpecsheetSee More

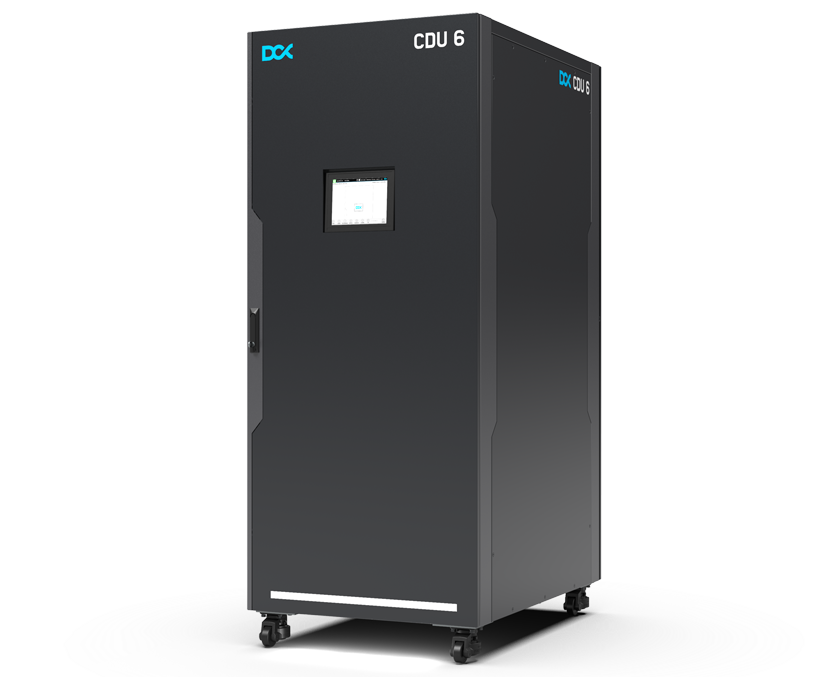

DCX HYDRO CDU 6

The In-Cabinet type coolant distribution unit (CDU), with a rated cooling capacity of 600kW. The system adopts a clamp connection, which is convenient and quick to install. Dual pump redundancy design, easy to replace and maintain, high reliability. It can be maintained without shutting down when the pump/power fails or the filter is clogged. The system has a comprehensive real-time monitoring function of operating parameters. The communication interface of the upper computer adopts 2 redundant RS485 & 2 redundant RJ45, and the default communication protocol Modbus RTU & Modbus TCP/IP. Also, it can be customized and modified according to customer requirements.
Get the SpecsheetSee More

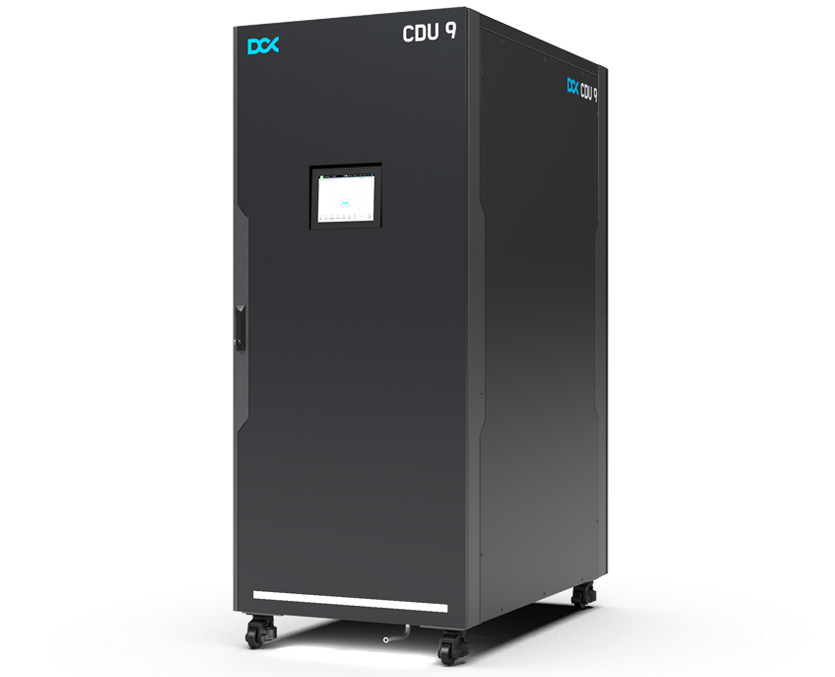

DCX HYDRO CDU 9

The In-Cabinet type coolant distribution unit (CDU), with a rated cooling capacity of 900kW. The system adopts a clamp connection, which is convenient and quick to install. Dual pump redundancy design, easy to replace and maintain, high reliability. It can be maintained without shutting down when the pump/power fails or the filter is clogged. The system has a comprehensive real-time monitoring function of operating parameters. The communication interface of the upper computer adopts 2 redundant RS485 & 2 redundant RJ45, and the default communication protocol Modbus RTU & Modbus TCP/IP. Also, it can be customized and modified according to customer requirements.
Get the SpecsheetSee More

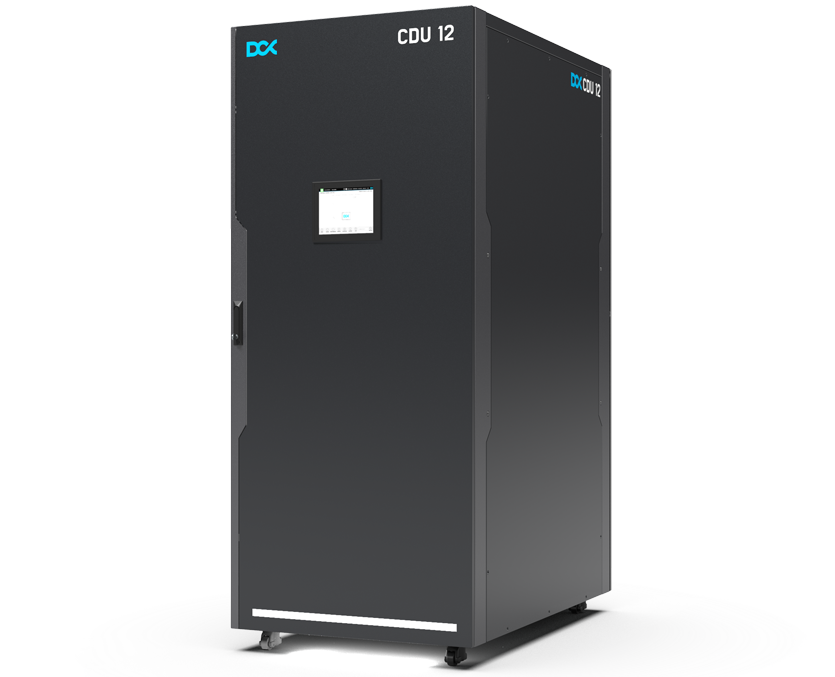

DCX HYDRO CDU 12

The In-Cabinet type coolant distribution unit (CDU), with a rated cooling capacity of 1.2-1.5 Megawatt. The system adopts a clamp connection, which is convenient and quick to install. Dual pump redundancy design, easy to replace and maintain, high reliability. It can be maintained without shutting down when the pump/power fails or the filter is clogged. The system has a comprehensive real-time monitoring function of operating parameters. The communication interface of the upper computer adopts 2 redundant RS485 & 2 redundant RJ45, and the default communication protocol Modbus RTU & Modbus TCP/IP. Also, it can be customized and modified according to customer requirements.
Get the SpecsheetSee More

DCX HYDRO CDU 50

The In-Cabinet type coolant distribution unit (CDU), with a rated cooling capacity of up to 5 megawatts! The system adopts a clamp connection, which is convenient and quick to install. Dual pump redundancy design, easy to replace and maintain, high reliability. It can be maintained without shutting down when the pump/power fails or the filter is clogged. The system has a comprehensive real-time monitoring function of operating parameters. The communication interface of the upper computer adopts 2 redundant RS485 & 2 redundant RJ45, and the default communication protocol Modbus RTU & Modbus TCP/IP. Also, it can be customized and modified according to customer requirements.
Get the SpecsheetSee More
