CryptoMining Immersion Cooling

Two years ago, DCX pioneered introducing scalable and modular Immersion Enclosure & Immersion Rack System, delivered to thousands of customers. In opposite to inefficient long tanks with multiple miners, DCX Immersion Enclosure saves space, allows flexible growth of mining operation from single rack system to megawatt soltuions with multiple immersion tanks connected to primary cooling loop. Currently DCX offers two Immersion Cooling Enclosure types:
The Upgraded PRO9 Immersion Mining Enclosure has been engineered to provide effective heat transfer for overclocked miners. With rated cooling capacity of up to 48kW it will support S19 with optional 6kW PSU or dense 12 x Whatsminer configs.
The new PRO10 Immersion Mining Enclosures – we engineered this solution from the ground up to deliver heat transfer capacity, required by new miner types, including immersion miners as MicroBT M56 Whatsminer or significantly overclocked Bitmain Antminers. It’s the most effective immersion system in the world, merging state-of-the art engineering with high heat transfer performance. PRO10 product line includes 3 platforms: PRO10 Immersion Mining Enclosure, PRO10 Immersion Mining Rack System and PRO10 High Density Immersion Mining Container.
  • Noiseless crypto mining – home immersion system eliminates high temperature, humidity, dust, vibration and noise & protects the miners from failures

  • Up to 60% more hashrate – Immersion enclosure enables overclocking for industry standard miners

  • Plug in heat reuse system with included dual loop cooling solution

  • Capacity from 24 to 32 Bitmain s19 Antminers and from 30 to 40 MicroBt M56 Whatsminers per single DCX Immersion Rack

  • Complete solution including integrated pump system, heat exchangers, monitoring sensors and industrial dry coolers

  • The best dielectric engineered fluid on the market. Fully synthetic engineered fluid with 2x better properties than any competitive liquid. Crystal clear, non-toxic, non-allergenic, long-life, eco-friendly, safe and chemically stable immersion coolant

PRO9 Immersion Mining Enclosure & Rack System

The most popular immersion cooling system in the world, but upgraded with 40% larger heat exchanger and 1.5x stronger pump than its predecessor. Dedicated for overclocked cryptomining delivers 48kW heat transfer from single enclosure. PRO9 Immersion Mining Enclosure is equipped with miner specific flow plates and grids to provide balanced flow and saturation for all miners.
Get the Specsheet

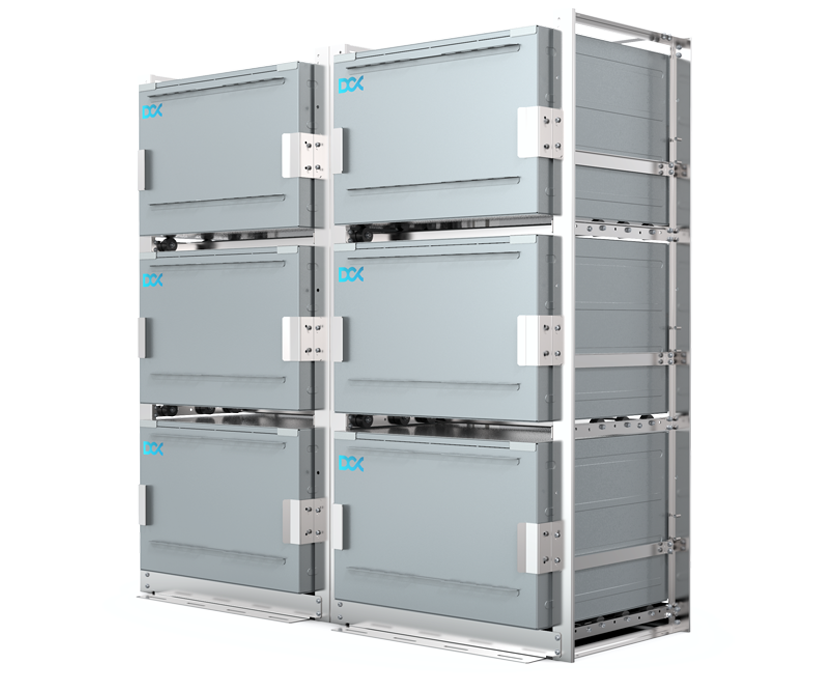

PRO10 Immersion Mining Enclosure & Rack System

Two years ago, DCX pioneered introducing scalable and modular Immersion Enclosure & Immersion Rack System. New PRO10 Immersion Mining Rack has been engineered to provide industry best efficiency and density for new miner models. The rack type immersion cooling system, with a rated cooling capacity of 256kW consists of strong self-supporting rack frame with integrated high-capacity manifold and industrial tubing. Lids built info rack frame provide full protection for users and engineered fluid from dust, contamination, spill and UV.
Get the Specsheet

20HD Immersion Mining Container

The most effective immersion system in the world, merging state-of-the art engineering with up to 2 MW heat transfer in standard 20HC unit. Based on the DCX Scale Out PRO10 Immersion Enclosures and Immersion Rack Systems, PRO10 HD container includes a complete hydraulic system. Containers are available with maximized miners density (all rack build) or with Low Power Switchgear components to be built-in within the container frame or delivered as turnkey system with full power distribution (switchgear) and accessories included. System can host 256 x S19 Antminers, 320 x M56 Whatsminers or 384 x M30/50 Whatsminers.
Get the Specsheet

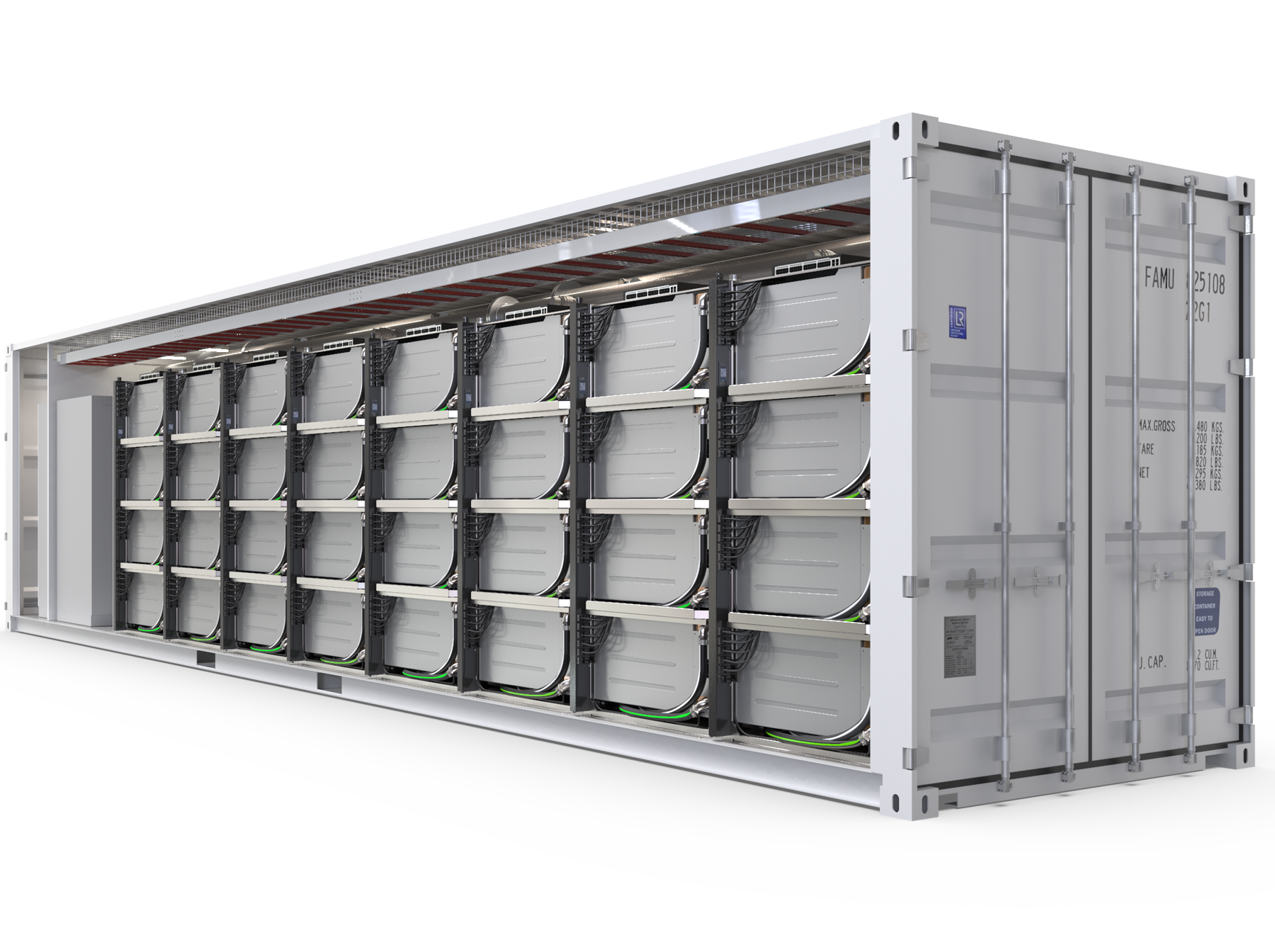

40HD Immersion Mining Container

The most effective immersion system in the world, merging state-of-the art engineering with up to 4 MW heat transfer in standard 40HC unit. Based on the DCX Scale Out PRO10 Immersion Enclosures and Immersion Rack Systems, PRO10 HD container includes a complete hydraulic system. Containers are available with maximized miners density (all rack build) or with Low Power Switchgear components to be built-in within the container frame or delivered as turnkey system with full power distribution (switchgear) and accessories included. System can host 576 x S19 Antminers, 720 x M56 Whatsminers or 864 x M30/50 Whatsminers.
Get the Specsheet

Engineered Fluids

DCX offers a range of carefully selected dielectric engineered fluids dedicated to immersion cooling of high performance servers, miners and other electronic components. In opposite to many purified mineral oils marketed for immersion cooling, DCX Thermasafe line of products is a fully synthetic engineered fluid dedicated for immersive cooling of electronics and semiconductors, designed specifically for cooling of servers or high-powered miners.
Our fluids are materially compatible with ASIC, GPUs, servers, and electronics equipment as well with it & power distribution cabling or various components of immersion infrastructure – piping, hoses, gaskets, enclosures and others.
Get the Specsheet

Immersion Optimized DryCoolers

DCX’s efficient and innovative cooling systems are complemented with a complete and modular portfolio of heat rejection devices – including dry coolers, to address the ability to grow the system flexibly.
We propose rugged and reliable design and broad portfolio ranging from 15kW to 2MW capable systems. Most importantly our dry coolers are liquid cooling optimized – elevated temperature in our immersion or hydro liquid cooling systems enable datacenter operators to save on heat rejection devices, meet the most demanding operating conditions and operate without huge environmental and financial cost of evaporated water, boosting both power usage and water usage effectiveness. The result is reduced footprint, improved capacity & density and lower noise level.
Get the SpecsheetSee More

Sustainability is in our DNA. Let's change the IT and we will change the world. Together.

We build smart and affordable liquid cooling systems for datacenters and high performance computing.

Everything is designed. Few things are designed well.

We’re DCX, a team of liquid cooling experts. We pride ourselves on being at the forefront of sustainable innovation, developing a unique and smart solutions for data center and telecommunication sector. Our goal is to create future industry standards in liquid cooling technology and to transform the industry forever.

Questions?

You have questions about liquid cooling? We have answers. Contact us. We will design a custom solution free of charge!

Let’s talk!

Every project starts with a vision. We design, manufacture and deliver custom liquid cooling solutions to make your dream a reality.

Get in Touch

We will advise, guide and support – the ideas are always free of charge!

Get your custom solution:

We need basic information to design custom liquid cooling system:

  • Quantity and general specification and dimensions of servers, ICT systems or other to be cooled components, along with power allocation per device or rack.

  • Brief overview of your project along with your main objective: better performance, water savings, energy efficiency, heat reuse, higher density?

  • Preferred liquid cooling technology: direct chip – coldplate system or immersion solution? Planned heat rejection or heat recovery strategy.

  • Country & city nearby planed location for climate data, heat transfer performance & shipping cost estimate.
