Immersion Optimized DryCoolers

DCX’s efficient and innovative cooling systems are complemented with a complete and modular portfolio of heat rejection devices – including dry coolers, to address the ability to grow the system flexibly.
We propose rugged and reliable design and broad portfolio ranging from 15kW to 2MW capable systems. Most importantly our dry coolers are liquid cooling optimized – elevated temperature in our immersion or hydro liquid cooling systems enable datacenter operators to save on heat rejection devices, meet the most demanding operating conditions and operate without huge environmental and financial cost of evaporated water, boosting both power usage and water usage effectiveness. The result is reduced footprint, improved capacity & density and lower noise level.
Whatever the requirement, we select a right solution for required capacity and operation altitude, humidity, air & liquid side temperatures. Equipped with premium quality components from trusted suppliers, including reliable fans from Ziehl Abegg & EBM Papst or Schneider Electric and Danfoss electronic controls – to make sure that our systems will operate flawlessly for years.

  • Broad Range of cooling systems – from integrated 15-40kW cooling & pumping systems, to industrial dry coolers in the range 120-240kW up to rugged 1-2MW platforms

  • Electronically controlled with automatic fan programming results with low noise levels

  • Immersion Optimized for High Performance Computing temperature threshold

  • Compact systems with highly efficient geometry result with maximum performance & minimum footprint

  • Build with rigid frames and sized to standard container dimensions, may be transported easily on MAFI platform which enables mobility and easy relocation if needed

  • CE Marked, PED EN(2014/68/EU) compliant, UL / ETL compliant

Menu

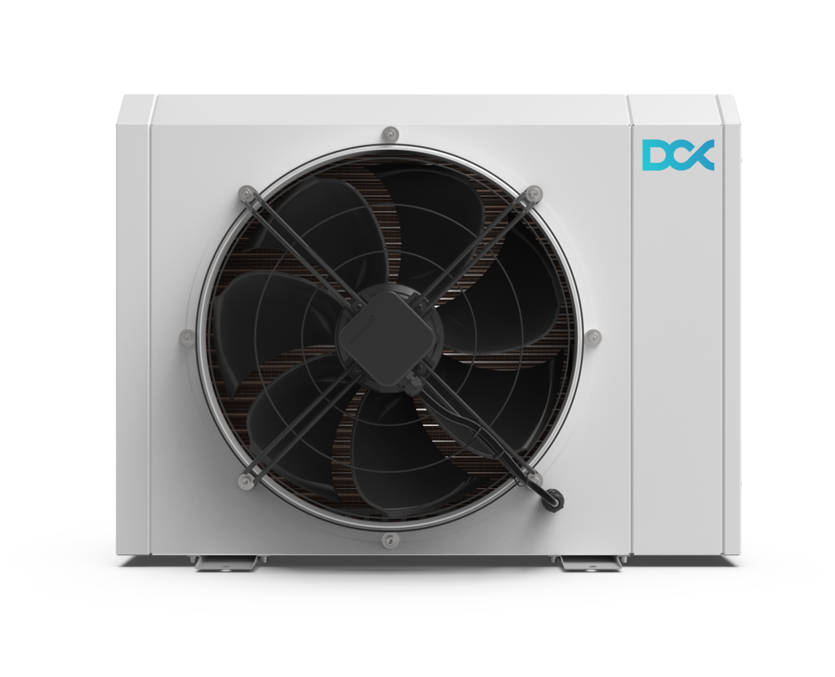

ICP15 Cooling System

ICP 15 is an Industrial dry cooler combined with integrated pump and adaptive fan control. Provides 15.87 kW of Heat Transfer at 35°C and 21 kW of Heat Transfer at 25°C. A complete solution, replacing dry cooler and a separate pump group. Over 3 times more effective than simple machine oil coolers. Equipped with adaptive fan controller which controls the speed of the fans, so they operate as silent as possible. ICP 15 may be combined with heat reuse loop and is ideally sized for home mining operations.
Get the SpecsheetSee More

ICP40 Cooling System

Immersion optimized dry cooler for the single immersion enclosure, combined with an integrated pump unit. Delivered with all components needed to start the operation. Equipped with 160 lpm / 42 GPM continuous duty pump. Dual 500 mm fan unit with dimensions 140 x 70 x 40 cm. Over 40kW of heat transfer in 35*C ambient and 50kW of heat transfer for average 25*C outside temperature. Standard 60-62dB fans or high performance 50-55dB fans. Maximum power 600W, average in moderate climate 400W.
Get the SpecsheetSee More

120kW Immersion Optimized Drycooler

Immersion optimized dry cooler for the Immersion Rack System. Space-saving standing or table-top platform with dimensions of 200 x 100 x 500 cm. Over 200 square meters of heat exchange area. Three standard 56-70 dB 500mm fans. Provides 120kW of heat transfer in 35*C ambient and over 140kW of heat transfer for average 20-25*C air temperature. Maximum power 1.7-2.2kW (4.4A) for high-performance mode and up to 40% less for average moderate temperature. Optional components, upgrades and accessories available.
Get the SpecsheetSee More

240kW Immersion Optimized Drycooler

Immersion optimized dry cooler for the multiple Immersion Racks. Space-saving V-shaped platform with dimensions of 230 x 160 x 18 0 cm. Almost 500 square meters of heat exchange area. Dual standard 56 dB 800mm fans or high performance 50-55dB fans. Provides 240kW of heat transfer in 35*C ambient and over 280kW of heat transfer for average 20-25*C air temperature. Maximum power 3.6kW (4.4A) for high-performance mode and up to 30% less for average moderate temperature. Optional components, upgrades, and accessories available.
Get the SpecsheetSee More

1MW Immersion Optimized DryCooler

DCX Rugged and Immersion Optimized Dry Cooler designed specifically to solve most demanding heat transfer challenges that crypto mining operators face. Rugged and reliable design combined with minimum footprint – a 40ft container size for 2MW capable system saves space and allows quick and affordable relocation of the mining operation if required. DC2000S is built for decades – robust construction, durable coating means it will withstand all weather conditions, including low temperatures, heavy snow, strong rains, wind loads and high humidity.
Get the SpecsheetSee More

2MW Immersion Optimized DryCooler

DCX Rugged and Immersion Optimized Dry Cooler designed specifically to solve most demanding heat transfer challenges that crypto mining operators face. Rugged and reliable design combined with minimum footprint – a 20ft container size for 1.2MW capable system saves space and allows quick and affordable relocation of the mining operation if required. DC1000S is built for decades – robust construction, durable coating means it will withstand all weather conditions, including low temperatures, heavy snow, strong rains, wind loads and high humidity.
Get the SpecsheetSee More

Sustainability is in our DNA. Let's change the IT and we will change the world. Together.

We build smart and affordable liquid cooling systems for datacenters and high performance computing.

Everything is designed. Few things are designed well.

We’re DCX, a team of liquid cooling experts. We pride ourselves on being at the forefront of sustainable innovation, developing a unique and smart solutions for data center and telecommunication sector. Our goal is to create future industry standards in liquid cooling technology and to transform the industry forever.

Questions?

You have questions about liquid cooling? We have answers. Contact us. We will design a custom engineering solution completely free od charge!

Tell us more!

Let’s talk!

Every project starts with a vision. We design, manufacture and deliver custom liquid cooling solutions to make your dream a reality.
