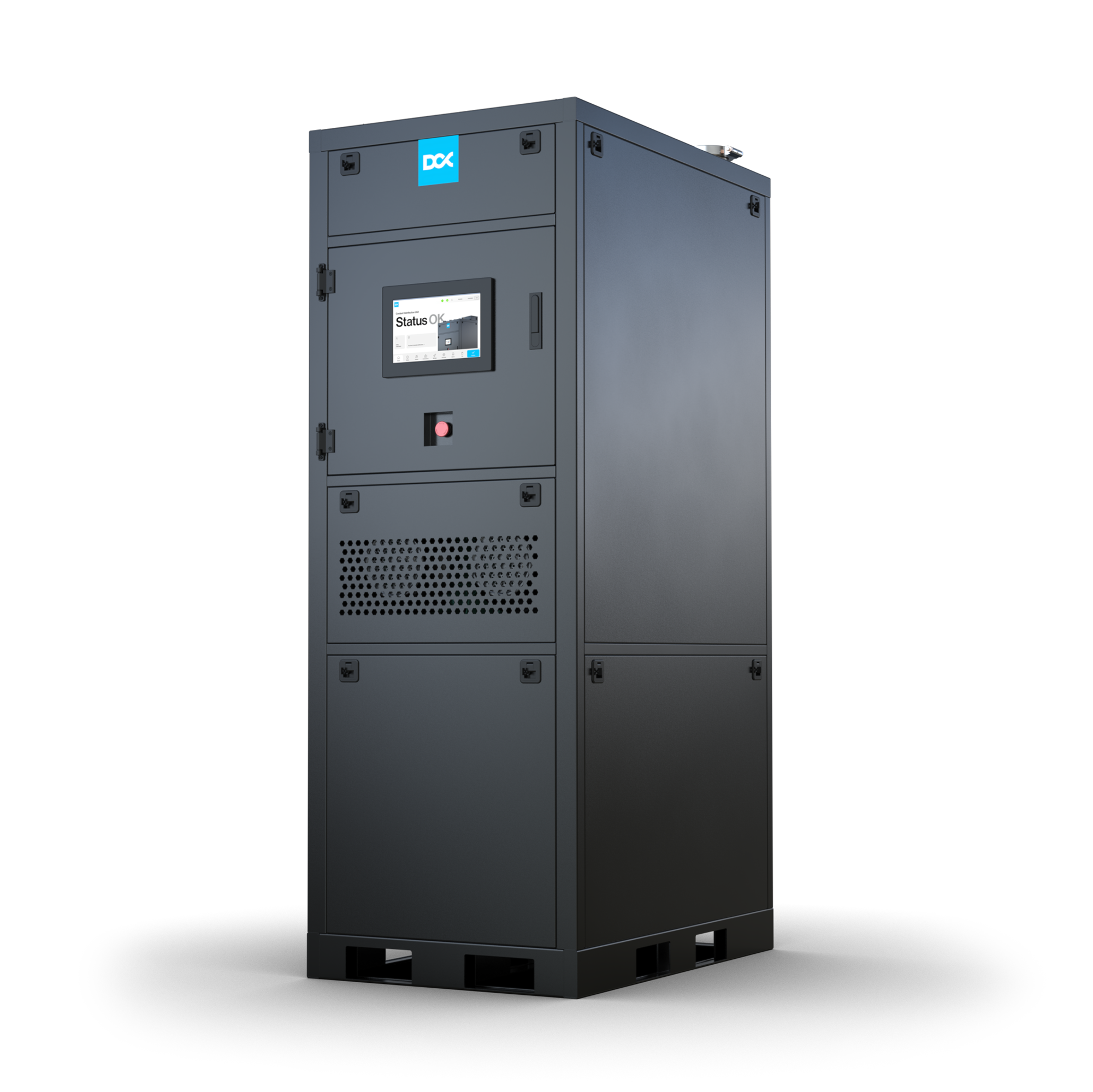

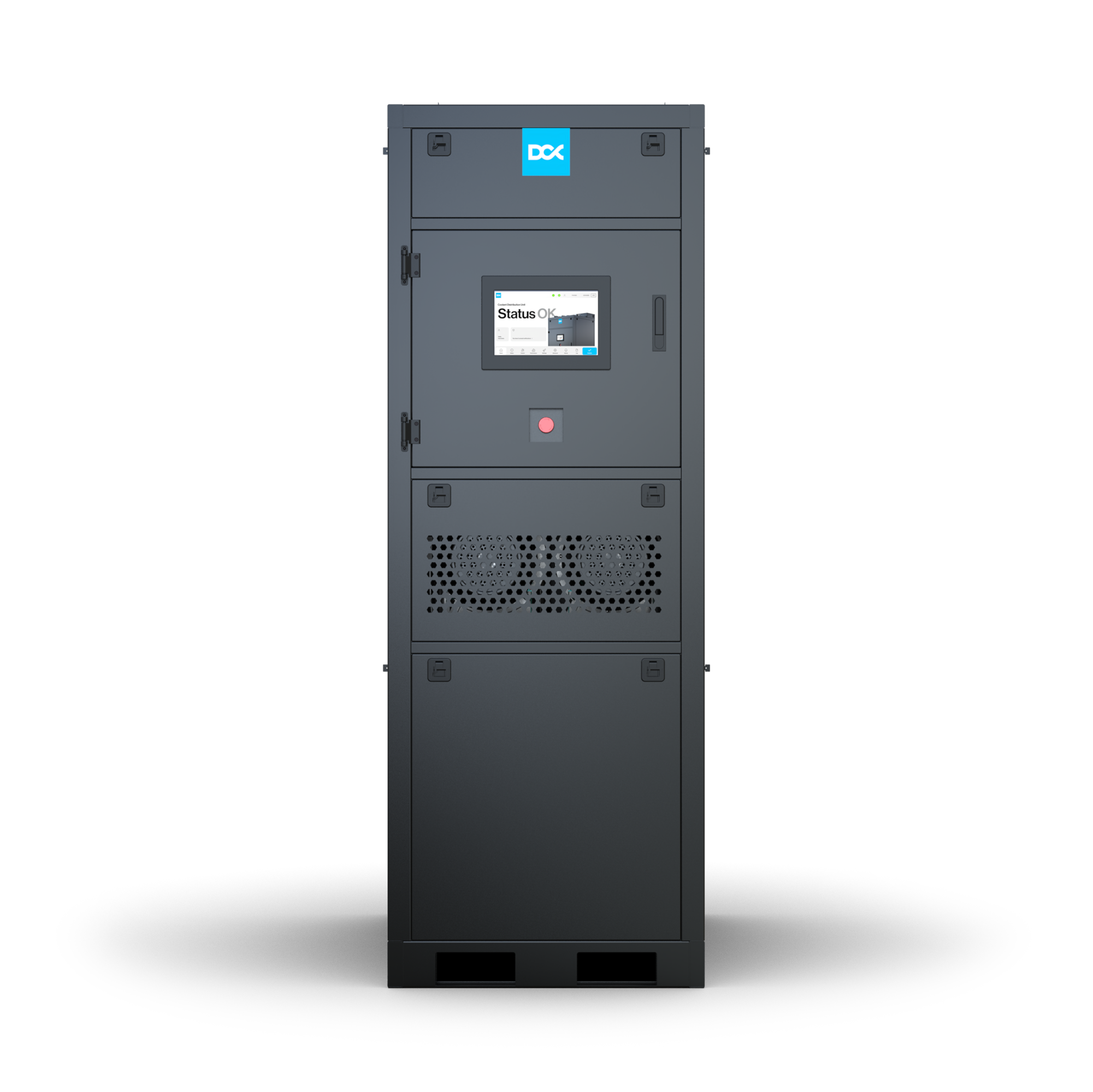

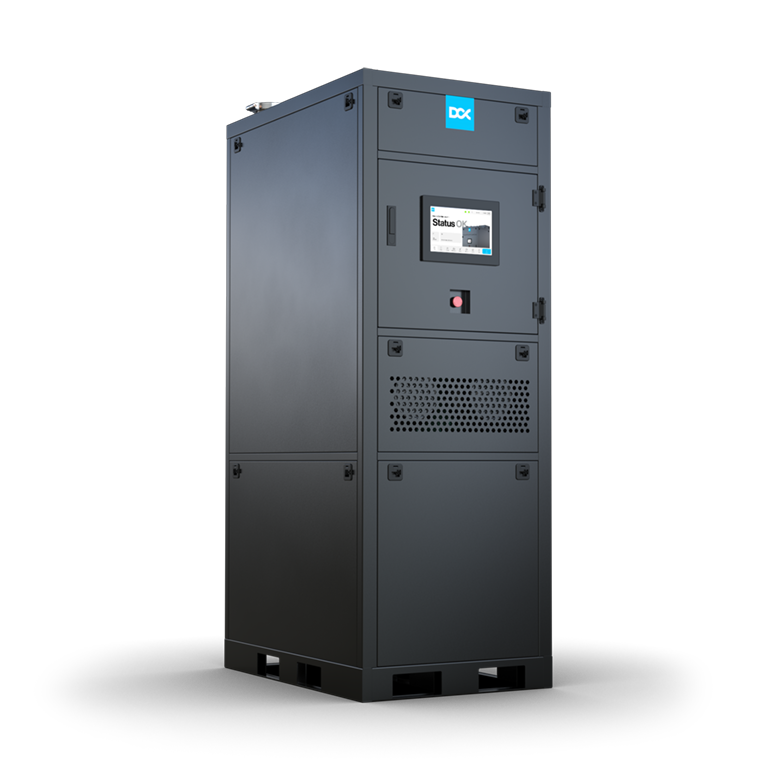

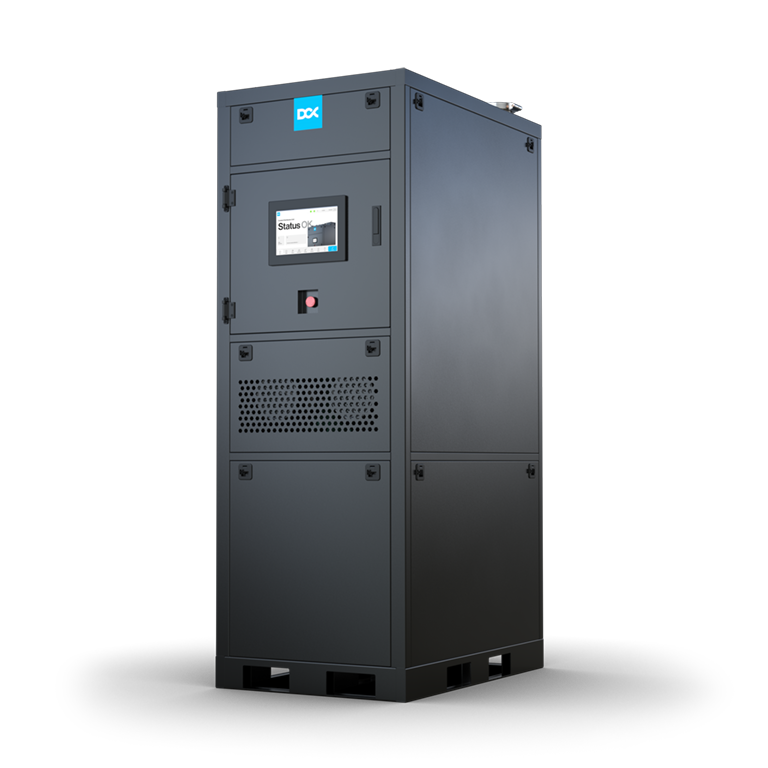

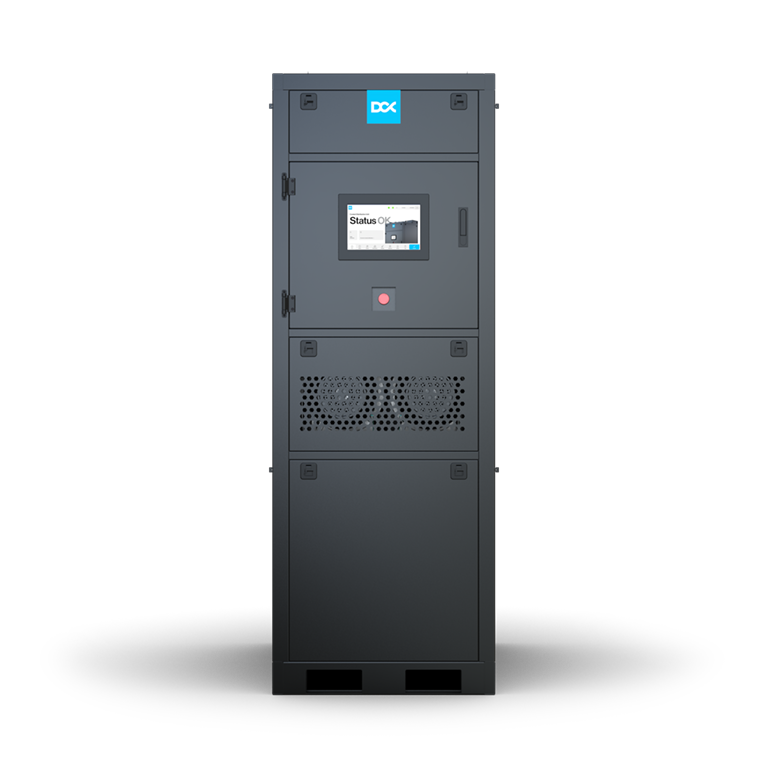

DCX ECDU 600/1200 V1
Entry Coolant Distribution Unit
Capacity
0.6 MW - 1.2 MW cooling with flexible deployment
Performance
45°C ultra-efficient cooling with 3°C approach temperature
Sustainability
1500 L/min flow with 0.6-1.2 MW cooling capacity
Power density
Up to 45°C warm water cooling for high-density IT environments
Overview
Features
- Supports scalable cooling capacity from 0.6 MW to 1.2 MW within a modular CDU platform.
- Flexible connection to primary and secondary loops from either top entry or technical floor interface.
- Integrates a heat exchanger with 3°C approach temperature (AT3), improving on the typical 4°C standard.
- Provides a 12” HMI with remote monitoring and group control functionality.
Features
- Industry-standard compact footprint (L 1.2 m | W 0.8 m | H 2.4 m) enabling seamless integration.
- Integrated coolant monitoring system ensuring long-term fluid quality and stable performance.
- Supports ASHRAE W45 cooling guidelines with low 3°C approach temperatures.
- Chiller energy savings of up to 10% achieved through optimized control and improved heat exchange efficiency.
- Prevents condensation operational risk by maintaining TCS water temperature above room dew point under varying environmental conditions.
System Build
Built on a compact, industry-standard footprint (1.2 m × 0.8 m × 2.4 m). The system is designed to support both localized and distributed cooling topologies, enabling deployment at the rack level, row level, or within mechanical galleries while maintaining consistent hydraulic and control performance. Integrated coolant management continuously monitors fluid quality, ensuring long-term stability of the secondary loop and protecting system components.
A centralized control architecture, supported by a 12-inch HMI, enables coordinated operation, remote supervision, and group-level control across multiple units, simplifying commissioning and long-term operational management. The platform is optimized for high-temperature operation up to 45°C supply water and achieves a 3°C approach temperature (AT3), delivering efficient thermal transfer under high-density conditions. Built exclusively with European-sourced components, the system ensures manufacturing consistency, high serviceability, and seamless integration into modern liquid-cooling ecosystems, meeting the expectations of enterprise data center operators for reliable and scalable infrastructure.
3°C The lowest approach temperature in the industry
N+1 redundant pumps, power supplies & controls
12-inch HMI with reomte monitoring and group control capacity
Modular and configurable TCS/FWS inlets & outlets
Get in Touch
We will advise, guide and support – the ideas are always free of charge!
Get your custom solution:
We need basic information to design custom liquid cooling system:
-
Quantity and general specification and dimensions of servers, ICT systems or other to be cooled components, along with power allocation per device or rack.
-
Brief overview of your project along with your main objective: better performance, water savings, energy efficiency, heat reuse, higher density?
-
Preferred liquid cooling technology: direct chip – coldplate system or immersion solution? Planned heat rejection or heat recovery strategy.
-
Country & city nearby planed location for climate data, heat transfer performance & shipping cost estimate.
