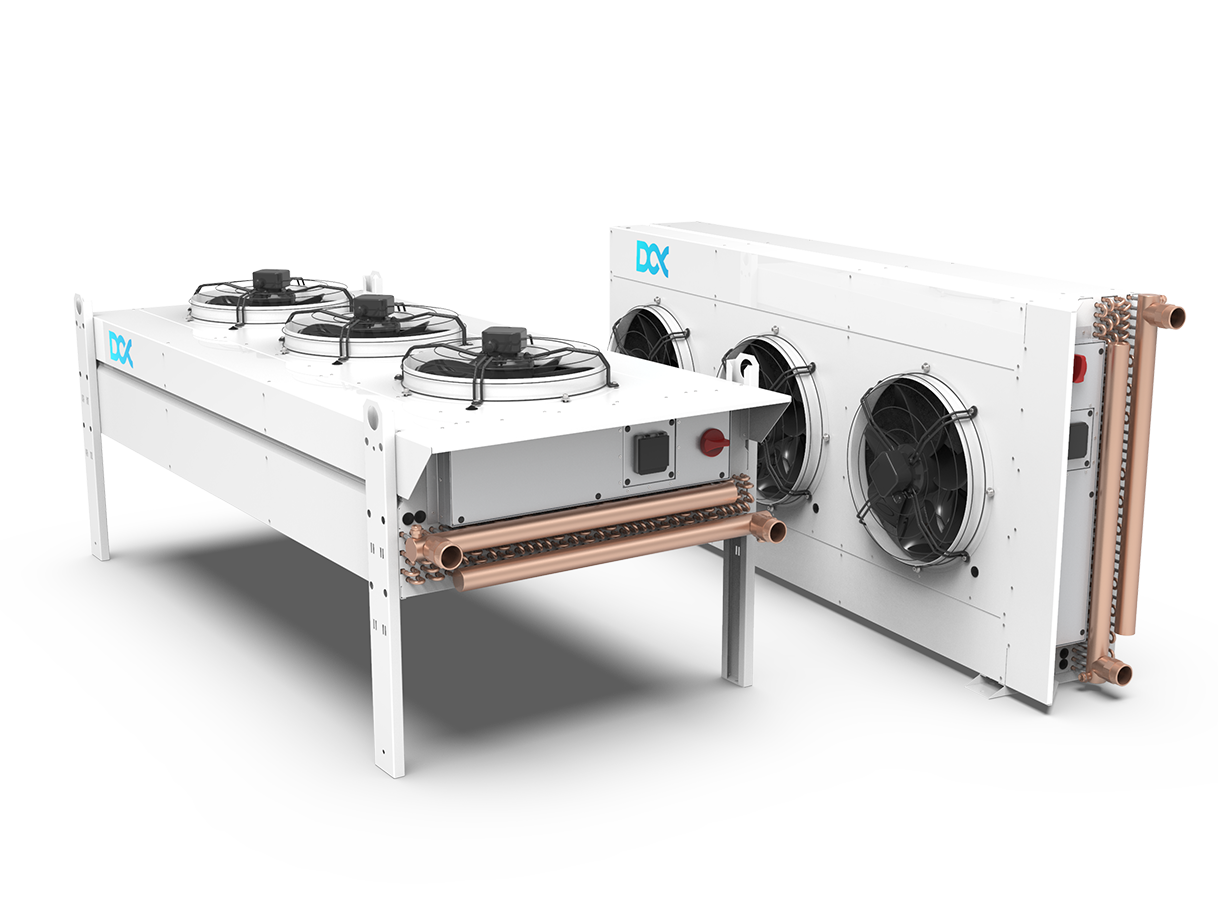

Immersion optimized dry cooler for the Immersion Rack System. Space-saving standing or table-top platform with dimensions of 200 x 100 x 500 cm. Over 200 square meters of heat exchange area. Three standard 56-70 dB 500mm fans. Provides 120kW of heat transfer in 35*C ambient and over 140kW of heat transfer for average 20-25*C air temperature. Maximum power 1.7-2.2kW (4.4A) for high-performance mode and up to 40% less for average moderate temperature. Optional components, upgrades and accessories available.
Capacity
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Performance
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Sustainability
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Energy Efficiency
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Overview
Immersion optimized dry cooler for the Immersion Rack System. Space-saving standing or table-top platform with dimensions of 200 x 100 x 500 cm. Over 200 square meters of heat exchange area. Three standard 56-70 dB 500mm fans. Provides 120kW of heat transfer in 35*C ambient and over 140kW of heat transfer for average 20-25*C air temperature. Maximum power 1.7-2.2kW (4.4A) for high-performance mode and up to 40% less for average moderate temperature. Optional components, upgrades and accessories available.
| Ninja Column 1 | Ninja Column 2 |
|---|---|
| Application | Immersion Mining Farm |
| Cooling capacity (Ambient temp=35°C) [kW] | 240 |
| Cooling capacity (Ambient temp=25°C) [kW] | 280 |
| Dimensions [mm] | 2100 x 1600 x 1600 |
| Fans | 2 x 800 mm |
| Noise level [dB(A)] | 58-72 |
| Maximum power consumption [kW] | 3.6 |
| Power Standard | 400V/3Ph/50hz/1.4-0.9A |
| Fittings | 2" / DN50 or 3" / DN80 |
| Fluid temperature In / Out [°C] | 60 / 40 |
| Transport weight [kg]|[lb] | 800 | 1764 |
| Nominal volume flow [mᶾ/h] | 10.3 |
| Pressure drop (bar) | 0.37 |
Features
- Enterprise class system & controls with full redundancy
- Complete loop separation and condensation control
- From 300kw to 1.2MW per single CDU
- From 6 to 28 server racks per single CDU
System Build

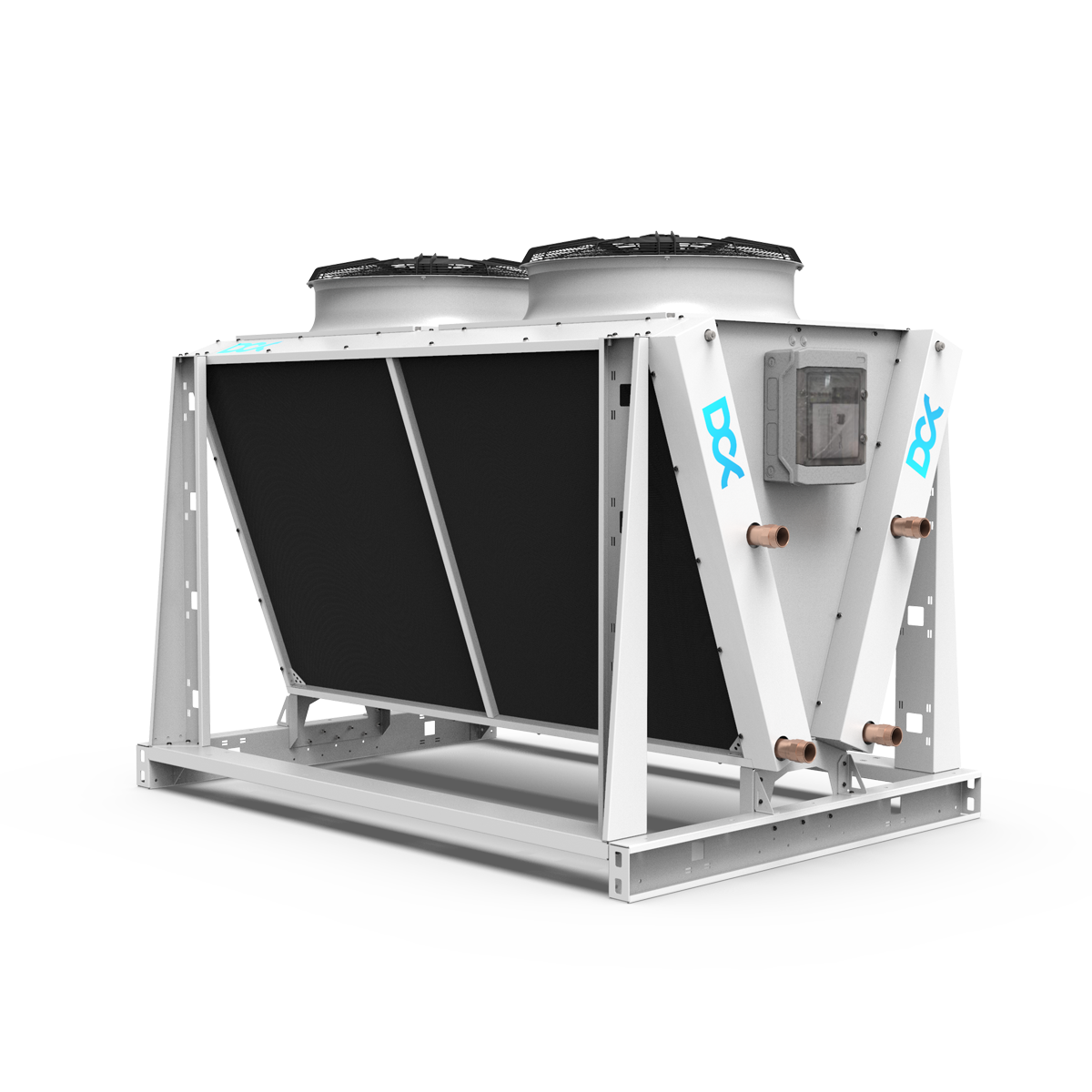

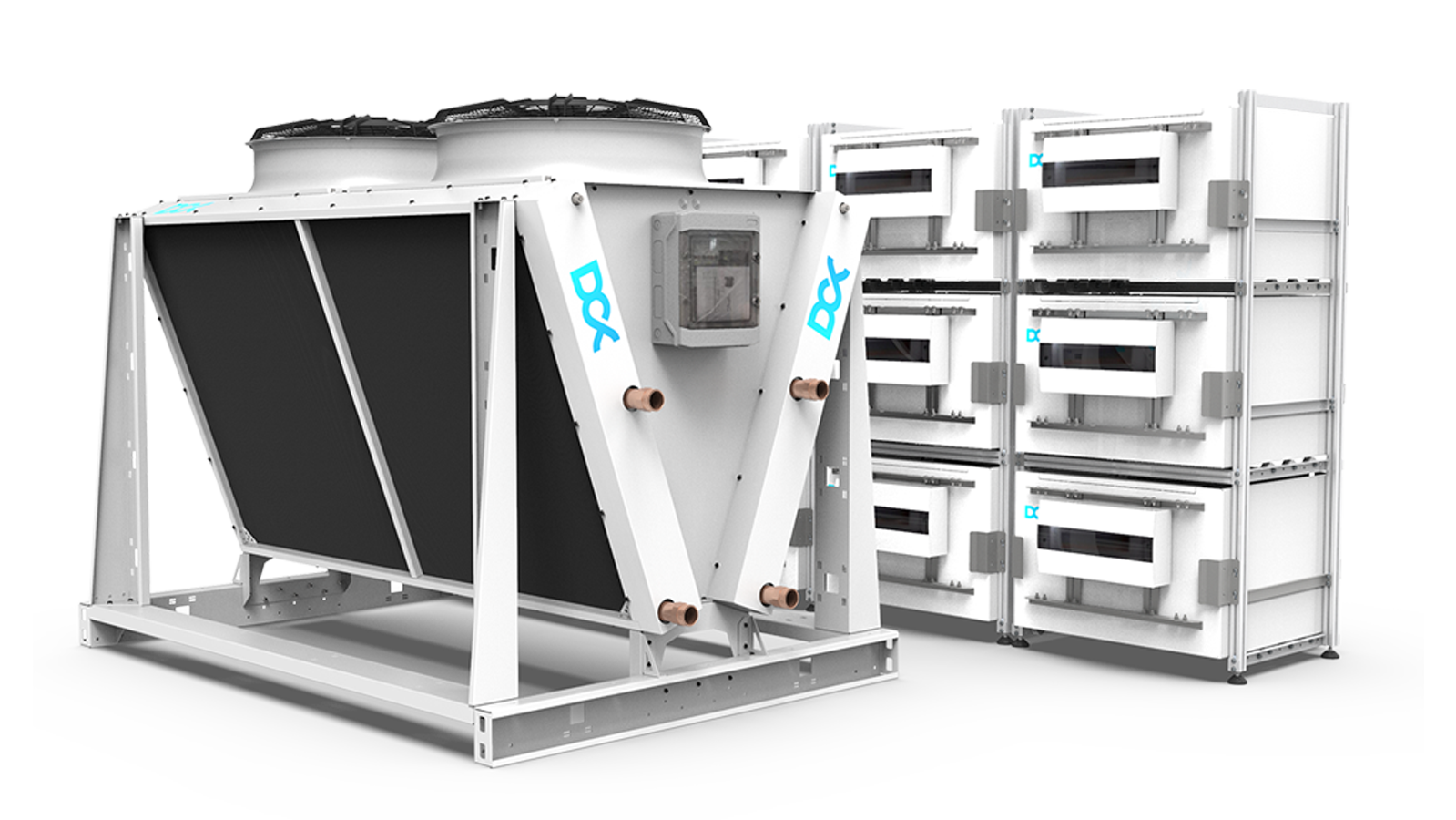

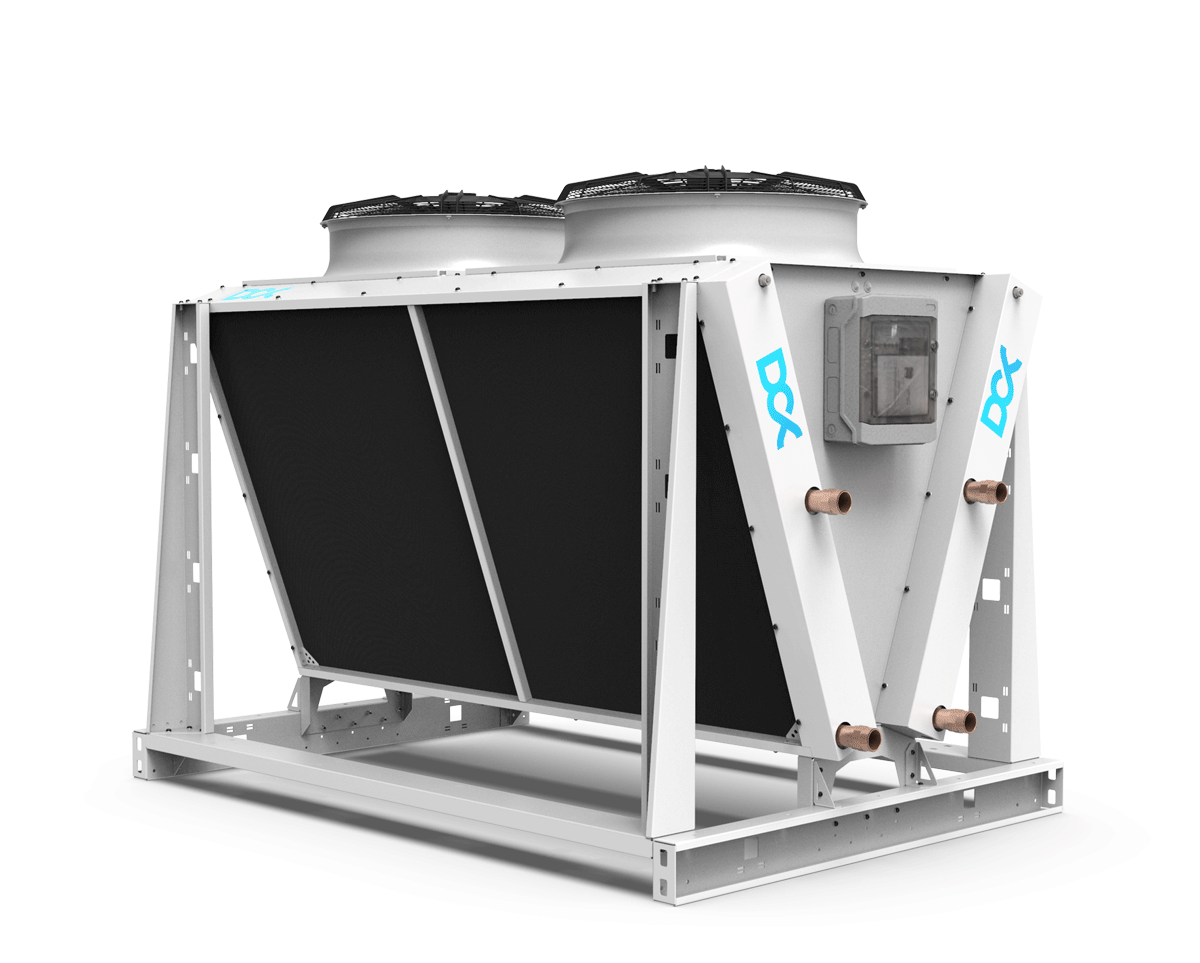

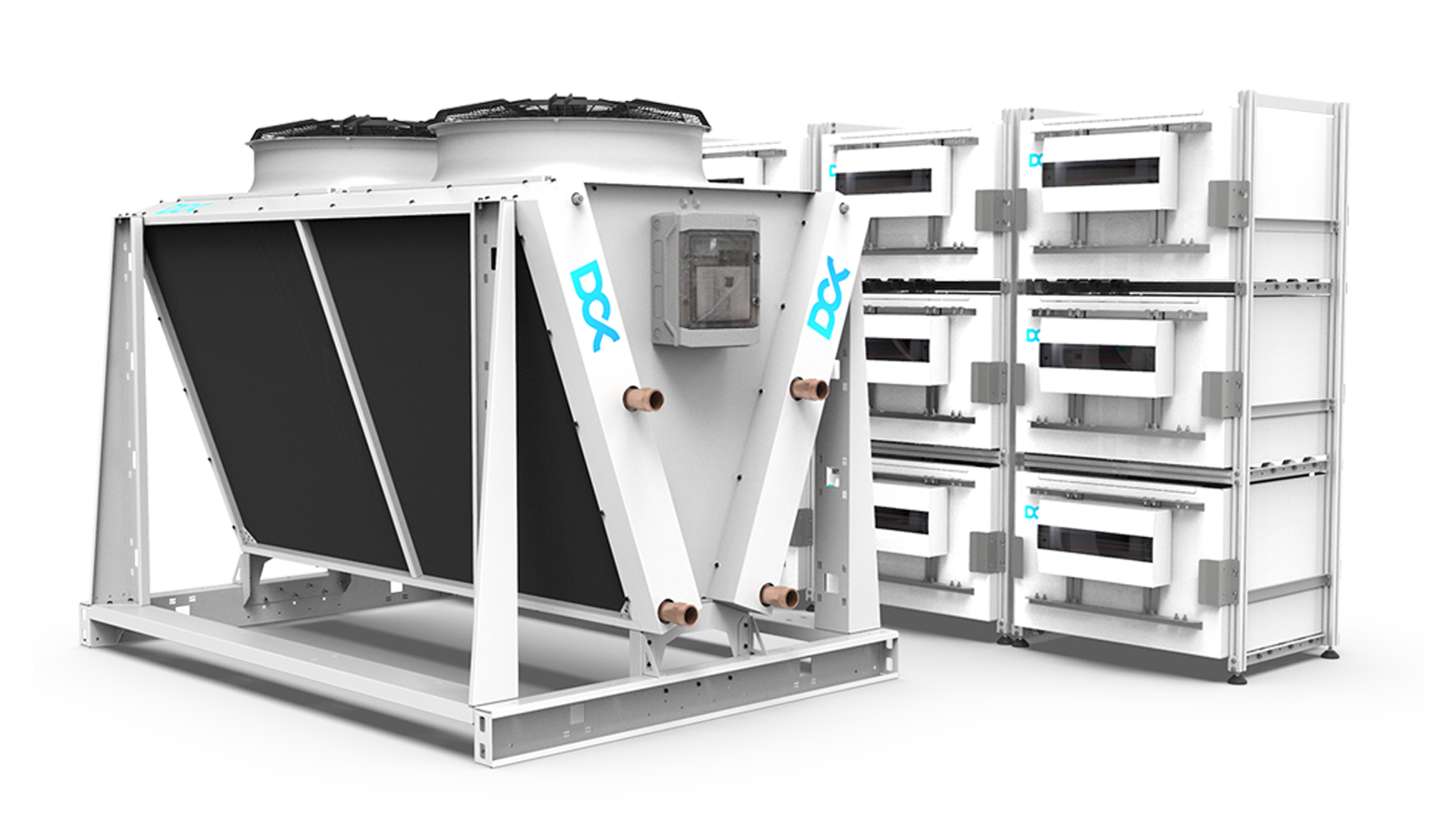

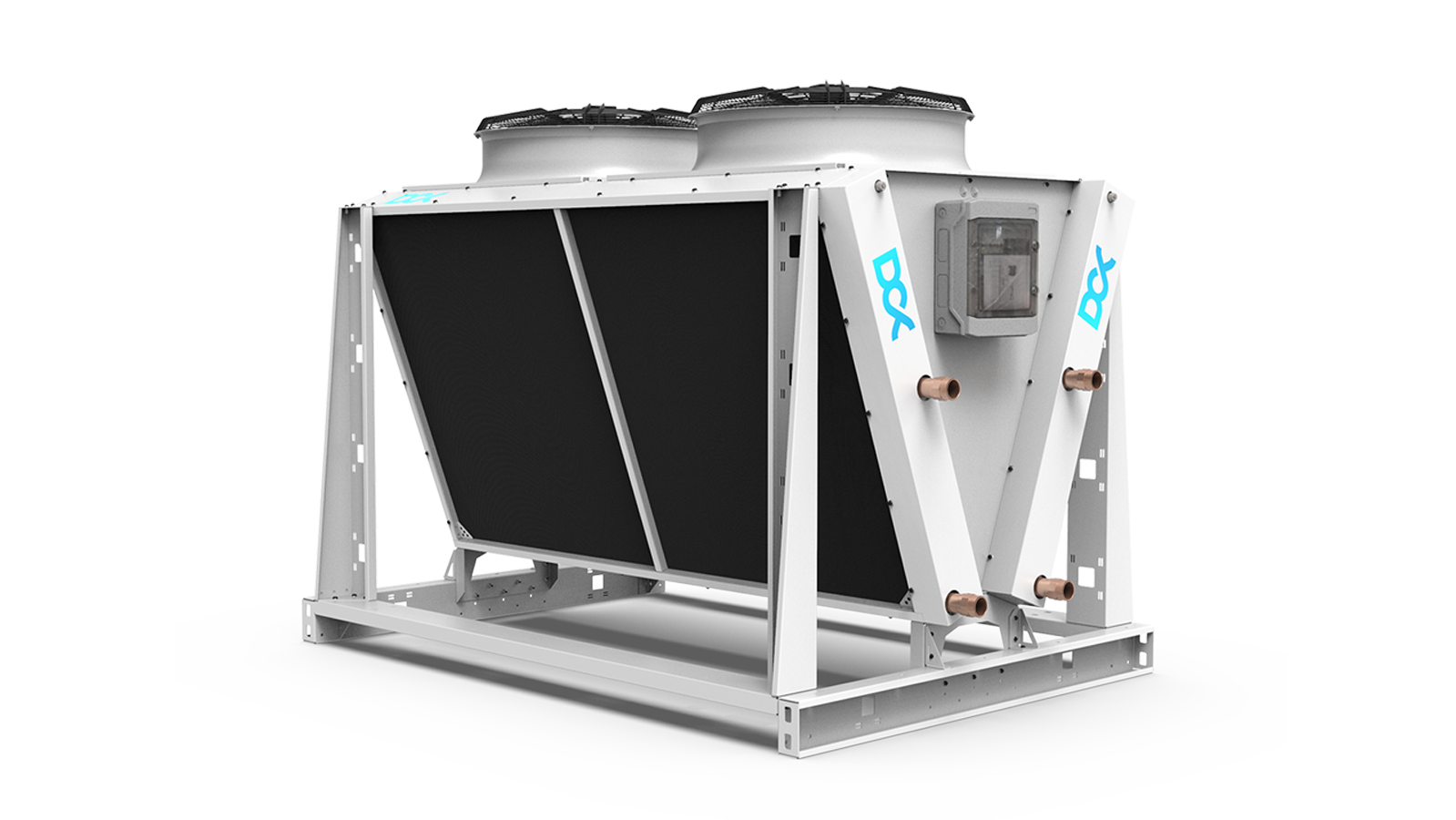

240 kW Dry cooler for Immersion Farm
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
Lorem ipsum dolor sit amet enim. Etiam ullamcorper. Suspendisse a pellentesque dui, non felis. Maecenas malesuada elit lectus felis, malesuada ultricies. Curabitur et ligula. Ut molestie a, ultricies porta urna. Vestibulum commodo volutpat a, convallis ac, laoreet enim. Phasellus fermentum in, dolor. Pellentesque facilisis. Nulla imperdiet sit amet magna. Vestibulum dapibus, mauris nec malesuada fames ac turpis velit, rhoncus eu, luctus et interdum adipiscing wisi. Aliquam erat ac ipsum. Integer aliquam purus. Quisque lorem tortor fringilla sed, vestibulum id, eleifend justo vel bibendum sapien massa ac turpis faucibus orci luctus non, consectetuer lobortis quis, varius in, purus. Integer ultrices posuere cubilia Curae, Nulla ipsum dolor lacus, suscipit adipiscing. Cum sociis natoque penatibus et ultrices volutpat.
Steel cover to prevent contamination, with spill prevention components.
All-steel enclosure big enough to house up to 400kg of dielectric fluid and miners. Building block for the rack or scale-out container installations. Enables high-temperature mining for the best heat transfer parameters. No more plastic boxes that can crack, leak or melt anytime, no more problems with temperature limits, no more problems with grounding.
L shaped frames to mount external components – switchgear, monitoring systems or PSUs. Placement of PSU outside of the immersion bath requires more retrofitting for the miners, but enables even bigger density and higher temperature for better heat exchange.
IP40 switchgear box for 10-12 3-4kW miners. Contains: 10-12 x overcurrent protection, circuit breaker, cable fittings, terminal blocks, cabling. We use top class Schneider, Eaton, Legrand or Siemens components.
Miner stack area. Sized carefully taking into account various miner types. Allows for flexible placement of different miners. Including: 15x Whatsminer M20/M30/M31 12x Whatsminer M21 8x Antminer S17+ / S17e / T17+ 8x Antminer S19 / S19PRO / T19 10x Innosilicon A10 PRO / A9 / A6 23x Innosilicon A10 (500M) 18x Antminer S9SE / S9K 20x Antminer S9I / S9J 8-16 x Mining rig with up to 12 GPU each 6-7x Hummer H1 Miner 5x Antminer K5 CKB Eaglesong 8-16 GPU rigs with 12GPU each (96-192GPUS)
ThermaSafe R™ Dielectric Engineered Fluid Best priced, 2 times better than recognized Bitcool BC-888 ASIC miner dielectric coolant. Dielectric, odorless, non-toxic, non-allergenic, long-life, eco friendly and safe HTF (Heat Transfer Fluid). Designed specifically for crypto mining operations, compatible with most ASIC, GPU and electronic equipment.
Filling kit. Flexible miners require more effort on fluid control. We want all the fluid to go through the miners not around. To enable a higher pressure drop around the miners we deliver filling kits which direct the fluid through the miners.
Features & Competitive Advantages
More performance, better reliability, and more comfort. Nothing is better.
Flexible system supports all crypto mining hardware
Standard UNI Enclosure is able to sustain crypto mining hardware including gpu rigs and asic miners. Each Universal ILC Enclosure will accommodate 6 GPU rigs with up to 12 GPU each , or 18 standard S9 / Z9 / A9 ASIC miners. That results in 72 gpu’s / 18 miners in one UNI Enclosure. Stacking up enclosures to 2/3 levels stack will effect in 216 GPUs or 54 miners in less than 1 square meter. Thats best you can get.
More performance. Less to pay.
Numbers are impressive – 30% less electricity bills with PUE of 1.05 – most of the fans can be removed and system cools miners a long with PSU’s. Liquid cooling systems allows for overclocking and fine tuning with custom firmware which effects in 20% more hashrate with hardware and software optimisation. Additionally most users get up to 10% more shares from stability.
Plug and Mine
Ready to use, delivered with everything required, “plug and mine” solution for every individual that goes pro with 2-3-4 miners or mining rigs. UNI Enclosure is also main component for scale up solutions with 10-20-40 enclosures in our custom racks. Everything is included whether it is single UNI enclosure or whole rack system. It will work flawlessly even in hot climate with high ambient temperature. Allows to mine virtually everywhere when low cost energy is available without failures and downtime. And the best is – setup takes minutes not weeks.
Silent, low profile mining
One aisc miner generates the noise of 75dB all day and night. With small farm of 2-4 rigs or asic miners its unbearable 24/7. Specific location is needed. Miners must be spaced out and placed in relatively cold place. Air must be filtered and vented which means expenditures for fans, air conditioning, location, filters. With our immersion liquid cooling you will be able mine quietly from your own place or from area with most convenient power. Placing 48 GPUs or 10 asic miners in the box with dimensions less than 70x60x60 solves all the problems. Simple as that.
Get in Touch
More performance, better reliability, and more comfort. Nothing is better.
Contact Us
Get your custom solution:
- Amount and type of cooled systems and power per system or rack, general description, and dimensions.
- Desired liquid cooling technology: direct chip – hydro or immersion system and the goal you want to achieve: better performance? Water savings? Energy efficiency? Heat reuse? Higher density?
- Country, City of planned location for climate data, heat transfer performance sizing & shipping cost estimate
