DCX Megawatt Immersion Optimized Dry Coolers designed specifically to solve most demanding heat transfer challenges that crypto mining operators face. Rugged and reliable build combined with minimum footprint – a 20ft container size for 1.2MW and 40ft for over 2MW capable system saves space and allows quick and affordable relocation of the mining operation if required. DCX Megawatt Immersion Optimized Dry Coolers are is built for decades – robust construction, durable coating means it will withstand all weather conditions, including low temperatures, heavy snow, strong rains, wind loads and high humidity. Different from fragile air coolers, equipped only with high quality fans and controllers, DCX Megawatt scale Dry Coolers are compact units to deliver from 1 to 2 MW of heat rejection in 35C / 95F ambient air temperature. We offer 2 platforms produced in EU and also dry coolers produced for us by local US based manufacturer.
Capacity
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Performance
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Sustainability
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Energy Efficiency
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus amet
Overview

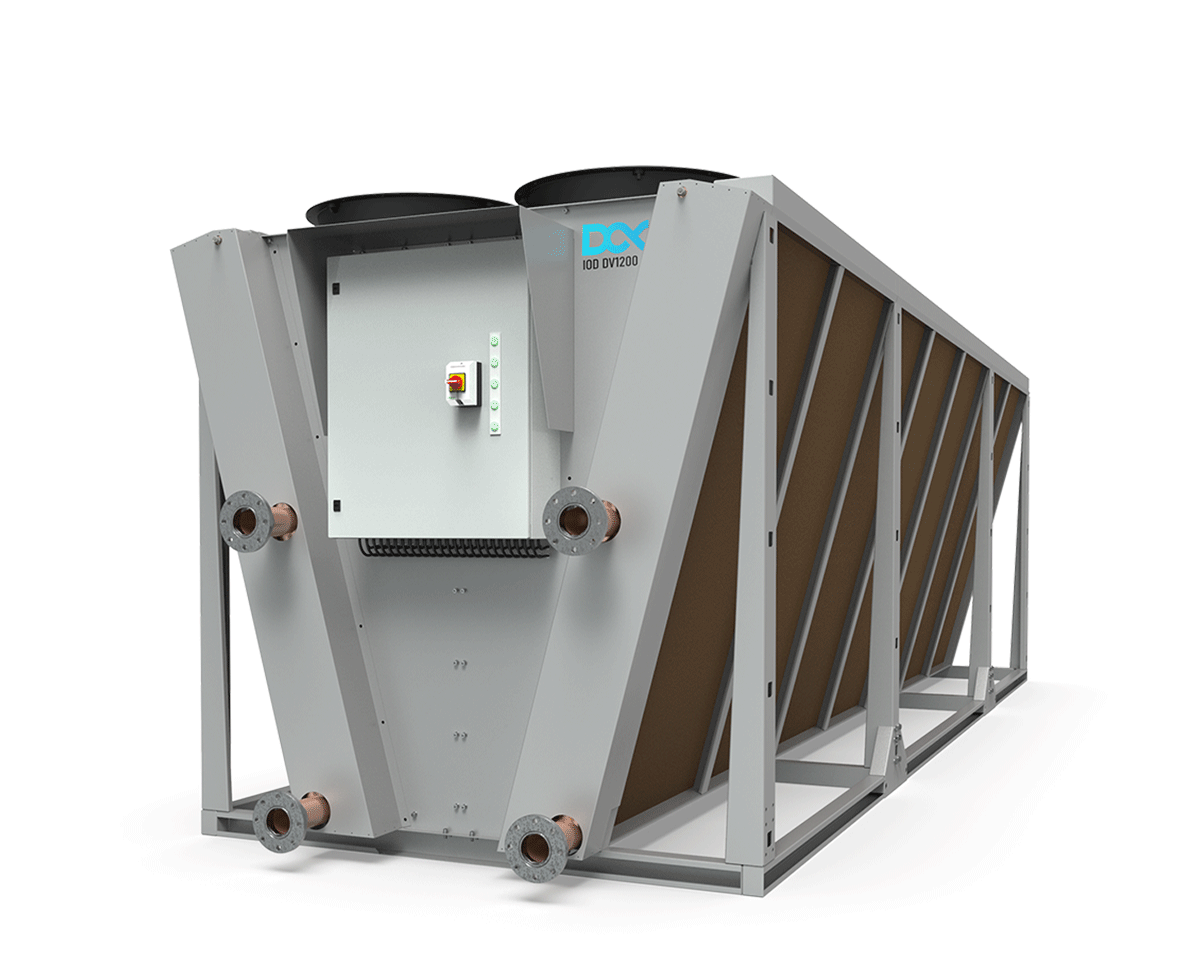

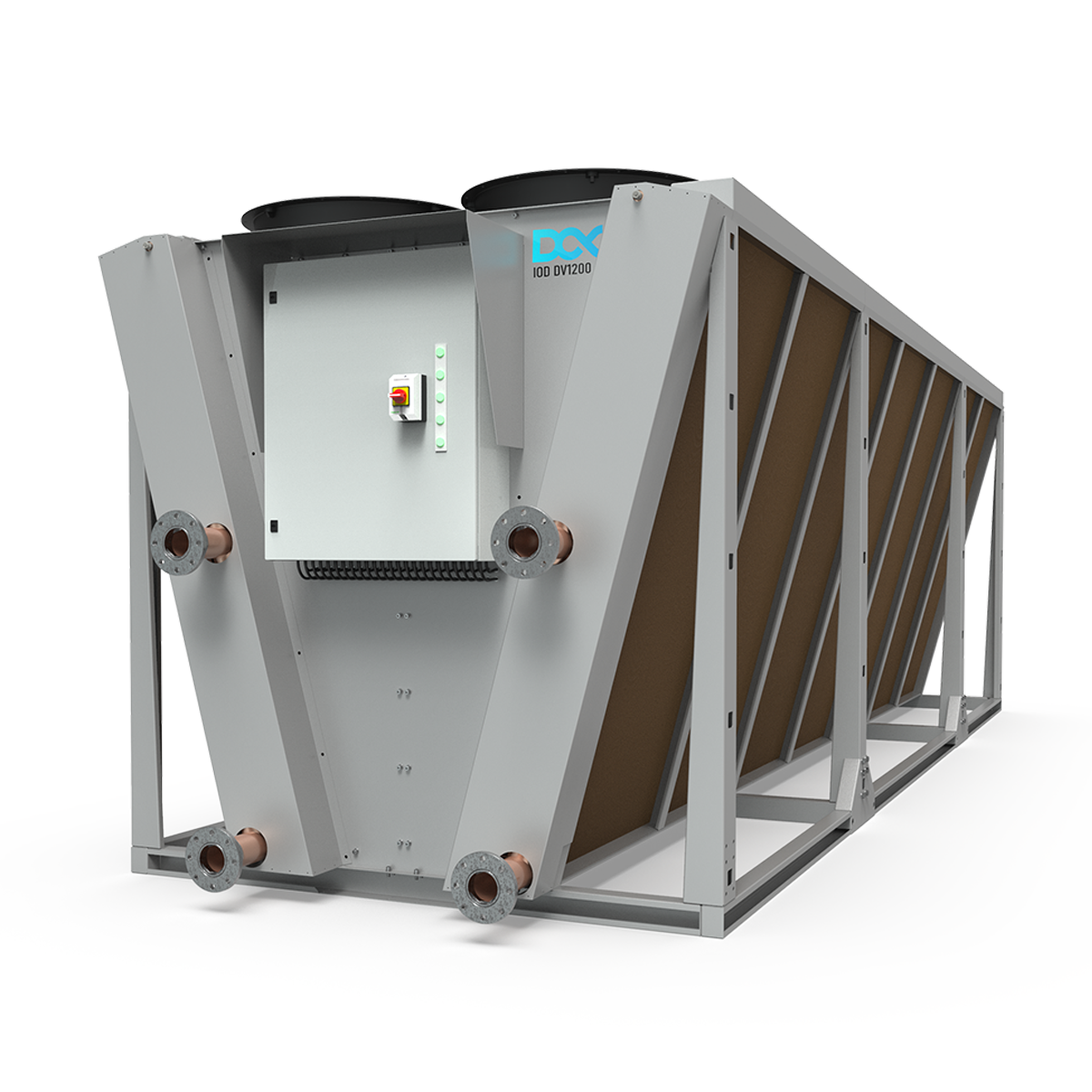

1200 kW Immersion Optimized AC Dry Cooler system dedicated for the scale out immersion systems (multiple immersion racks) providing from 1.2 to over 1.6MW of heat rejection for the crypto mining operations. Special build means high efficiency cooling geometry and low pressure drop, enabling lower fan energy use and maintaining moderate noise levels.
DCX Rugged and Immersion Optimized Dry Cooler designed specifically to solve most demanding heat transfer challenges that crypto mining operators face. Rugged and reliable design combined with minimum footprint – a 20ft container size for 1.2MW capable system saves space and allows quick and affordable relocation of the mining operation if required. DC1000S is built for decades – robust construction, durable coating means it will withstand all weather conditions, including low temperatures, heavy snow, strong rains, wind loads and high humidity.
Dry cooler is liquid cooling optimized – elevated temperature in our immersion or hydro liquid cooling systems enable crypto mining and datacenter operators to save on heat rejection devices and meet the most demanding operating conditions. The result is reduced footprint, improved capacity & density and lower noise level.

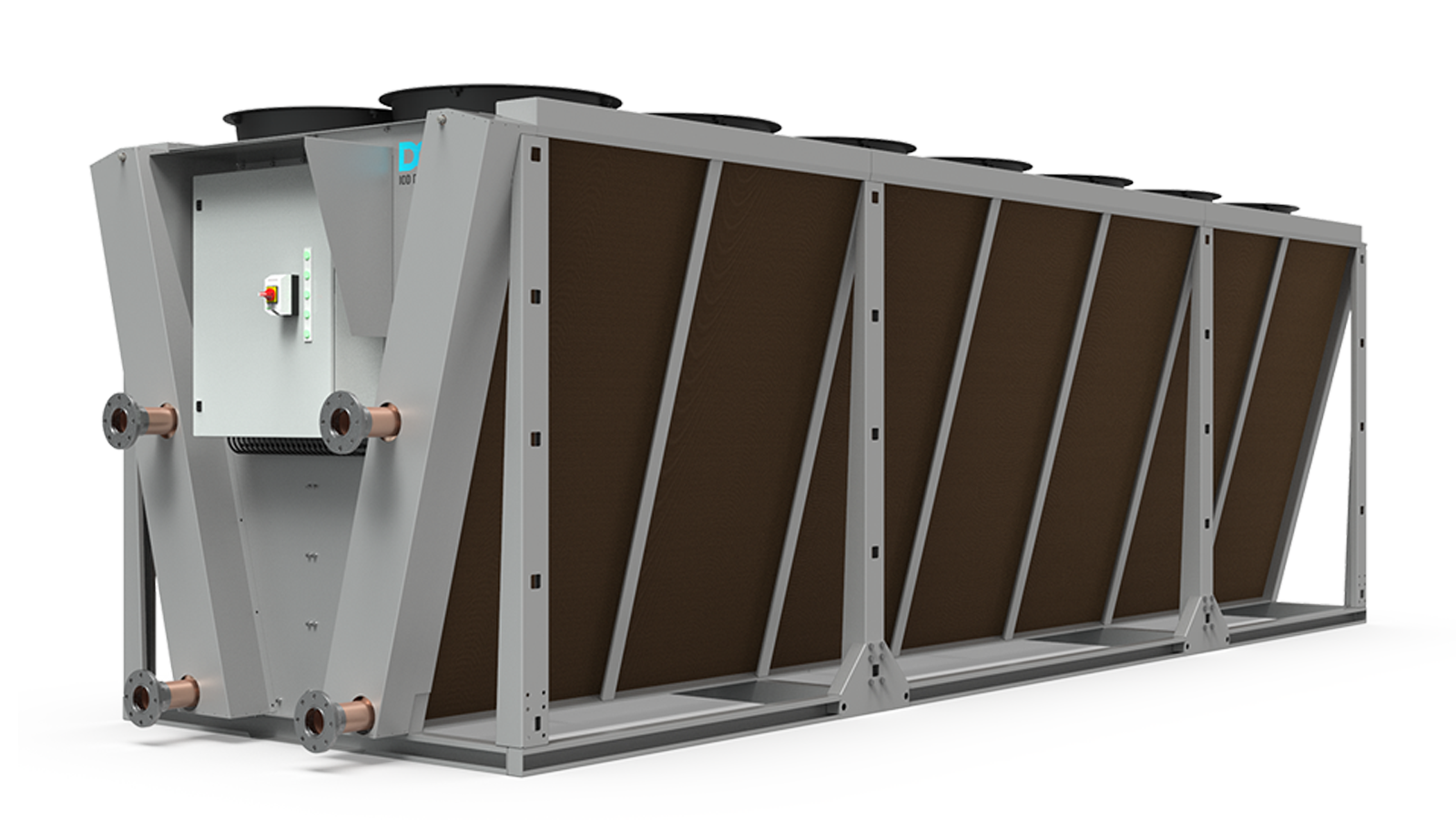

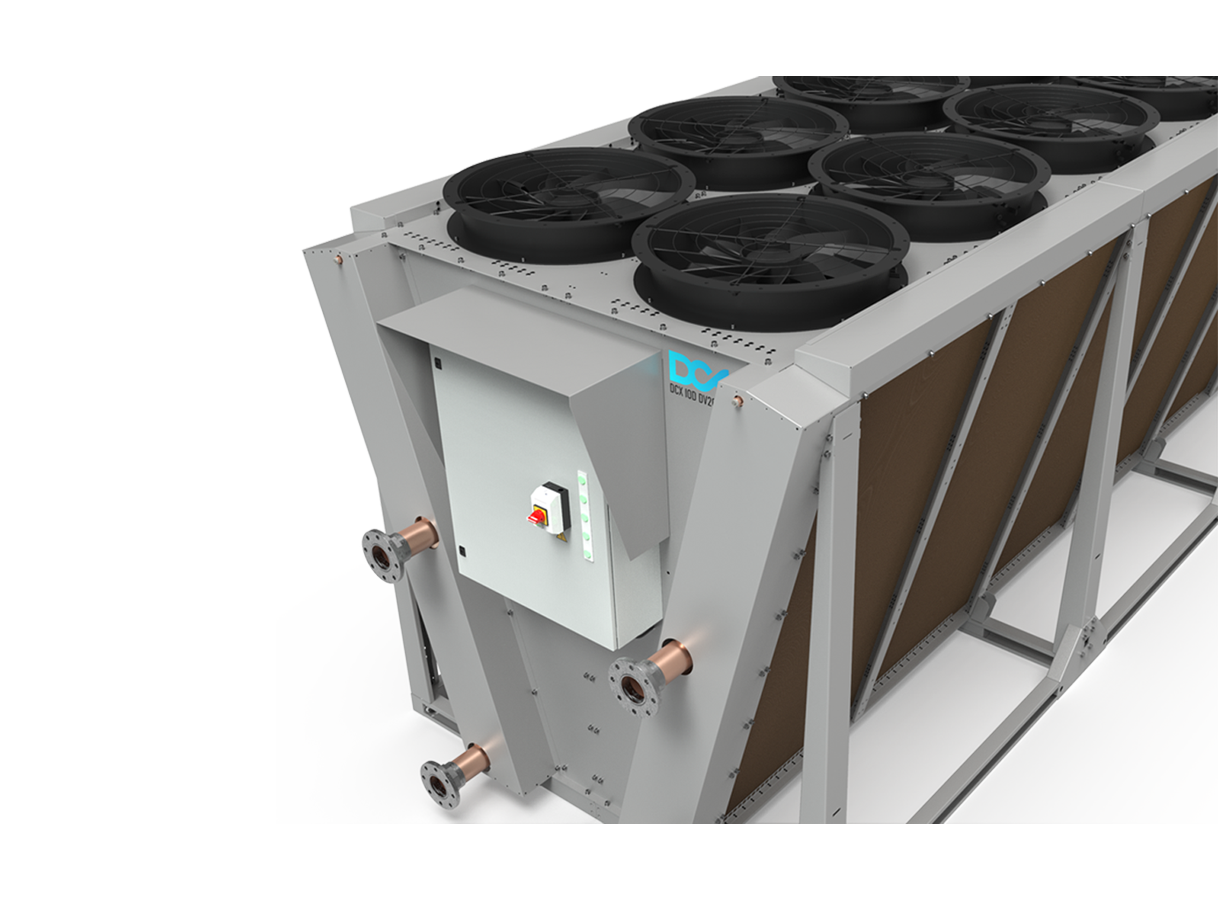

1.2 MW Immersion Optimized AC Dry Cooler with Industrial, space saving V type platform. It assures over 1924 square meters of heat exchange area with 14 x 65-79 dB(10m), 1000rpm 800mm (10x2100W) AC / or EC fans. The system provides 1200kW of heat transfer in 35*C ambient over 1400kW of heat transfer for average 20-25*C air temperature and up to 1600kW when combined with standard immersion cooling systems. Dry cooler is equipped with energy efficient adaptive fan control.
Optimized for high fluid (60C/140F inlet and /40C/104F) outlet and ambient temperatures (35C / 95F). Cooper (not steel) coils for improved performance. The system offers compact dimensions 7.5 x 2.0 x 2.2m., providing Ziehl Abegg AC or EC adaptive controlled fans for energy efficiency. It fits HC standard container dimensions, which results in its easy transport. Complete system controls based on Schneider Electric Modicon M172 Logic Controller.
Sized for most challenging regions of operation in terms of expected capacity and operation altitude, humidity, air & liquid side temperatures. Equipped with premium quality components from trusted suppliers, including reliable fans from Ziehl Abegg & EBM Papst or Schneider Electric and Danfoss electronic controls – to make sure that our systems will operate flawlessly for years.
Our Immersion Optimized range of Dry coolers has been developed specifically to reflect the crypto mining industry requirements and liquid cooling specific temperature range. As opposed to open water towers, close loop cooling systems allow investors to operate without huge environmental and financial cost of evaporated water, boosting both power usage and water usage effectiveness. Dry coolers enable water independent operation virtually any area of the globe. Made in EU, sized to your needs.
Features
- 1000-1600kW Compact Immersion Optimized, electronically controlled Dry Cooler
- Maximum performance, minimum footprint with highly efficient geometry
- Low noise and flexible control options with 7 sound levels
- Dedicated for High Performance Computing temperature threshold
- Special rigid frame enables mobility and easy relocation if needed
- Optional Adiabatic Spray / Panel System
| Ninja Column 1 | Ninja Column 2 |
|---|---|
| Application | Immersion Mining Farm |
| Cooling capacity (Ambient temp=35°C) [kW] | 1236 |
| Dimensions [mm] | 7000 x 2620 x 2300 |
| Fans | 12 x 800 mm |
| Maximum power consumption [kW] | 32.4 |
| Power Standard | 400V/3Ph/50hz |
| Fittings | 4" / DN100 |
| Fluid In / Out [°C] | 60 / 40 |
| Nominal volume flow [mᶾ/h] | 26.9 |
| Pressure drop (bar) | 0.35 |
Features
- Enterprise class system & controls with full redundancy
- Complete loop separation and condensation control
- From 300kw to 1.2MW per single CDU
- From 6 to 28 server racks per single CDU
System Build
1MW Immersion Optimized DryCooler
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
Lorem ipsum dolor sit amet enim. Etiam ullamcorper. Suspendisse a pellentesque dui, non felis. Maecenas malesuada elit lectus felis, malesuada ultricies. Curabitur et ligula. Ut molestie a, ultricies porta urna. Vestibulum commodo volutpat a, convallis ac, laoreet enim. Phasellus fermentum in, dolor. Pellentesque facilisis. Nulla imperdiet sit amet magna. Vestibulum dapibus, mauris nec malesuada fames ac turpis velit, rhoncus eu, luctus et interdum adipiscing wisi. Aliquam erat ac ipsum. Integer aliquam purus. Quisque lorem tortor fringilla sed, vestibulum id, eleifend justo vel bibendum sapien massa ac turpis faucibus orci luctus non, consectetuer lobortis quis, varius in, purus. Integer ultrices posuere cubilia Curae, Nulla ipsum dolor lacus, suscipit adipiscing. Cum sociis natoque penatibus et ultrices volutpat.
Steel cover to prevent contamination, with spill prevention components.
All-steel enclosure big enough to house up to 400kg of dielectric fluid and miners. Building block for the rack or scale-out container installations. Enables high-temperature mining for the best heat transfer parameters. No more plastic boxes that can crack, leak or melt anytime, no more problems with temperature limits, no more problems with grounding.
L shaped frames to mount external components – switchgear, monitoring systems or PSUs. Placement of PSU outside of the immersion bath requires more retrofitting for the miners, but enables even bigger density and higher temperature for better heat exchange.
IP40 switchgear box for 10-12 3-4kW miners. Contains: 10-12 x overcurrent protection, circuit breaker, cable fittings, terminal blocks, cabling. We use top class Schneider, Eaton, Legrand or Siemens components.
Miner stack area. Sized carefully taking into account various miner types. Allows for flexible placement of different miners. Including: 15x Whatsminer M20/M30/M31 12x Whatsminer M21 8x Antminer S17+ / S17e / T17+ 8x Antminer S19 / S19PRO / T19 10x Innosilicon A10 PRO / A9 / A6 23x Innosilicon A10 (500M) 18x Antminer S9SE / S9K 20x Antminer S9I / S9J 8-16 x Mining rig with up to 12 GPU each 6-7x Hummer H1 Miner 5x Antminer K5 CKB Eaglesong 8-16 GPU rigs with 12GPU each (96-192GPUS)
ThermaSafe R™ Dielectric Engineered Fluid Best priced, 2 times better than recognized Bitcool BC-888 ASIC miner dielectric coolant. Dielectric, odorless, non-toxic, non-allergenic, long-life, eco friendly and safe HTF (Heat Transfer Fluid). Designed specifically for crypto mining operations, compatible with most ASIC, GPU and electronic equipment.
Filling kit. Flexible miners require more effort on fluid control. We want all the fluid to go through the miners not around. To enable a higher pressure drop around the miners we deliver filling kits which direct the fluid through the miners.
Features & Competitive Advantages
More performance, better reliability, and more comfort. Nothing is better.
Flexible system supports all crypto mining hardware
Standard UNI Enclosure is able to sustain crypto mining hardware including gpu rigs and asic miners. Each Universal ILC Enclosure will accommodate 6 GPU rigs with up to 12 GPU each , or 18 standard S9 / Z9 / A9 ASIC miners. That results in 72 gpu’s / 18 miners in one UNI Enclosure. Stacking up enclosures to 2/3 levels stack will effect in 216 GPUs or 54 miners in less than 1 square meter. Thats best you can get.
More performance. Less to pay.
Numbers are impressive – 30% less electricity bills with PUE of 1.05 – most of the fans can be removed and system cools miners a long with PSU’s. Liquid cooling systems allows for overclocking and fine tuning with custom firmware which effects in 20% more hashrate with hardware and software optimisation. Additionally most users get up to 10% more shares from stability.
Plug and Mine
Ready to use, delivered with everything required, “plug and mine” solution for every individual that goes pro with 2-3-4 miners or mining rigs. UNI Enclosure is also main component for scale up solutions with 10-20-40 enclosures in our custom racks. Everything is included whether it is single UNI enclosure or whole rack system. It will work flawlessly even in hot climate with high ambient temperature. Allows to mine virtually everywhere when low cost energy is available without failures and downtime. And the best is – setup takes minutes not weeks.
Silent, low profile mining
One aisc miner generates the noise of 75dB all day and night. With small farm of 2-4 rigs or asic miners its unbearable 24/7. Specific location is needed. Miners must be spaced out and placed in relatively cold place. Air must be filtered and vented which means expenditures for fans, air conditioning, location, filters. With our immersion liquid cooling you will be able mine quietly from your own place or from area with most convenient power. Placing 48 GPUs or 10 asic miners in the box with dimensions less than 70x60x60 solves all the problems. Simple as that.
